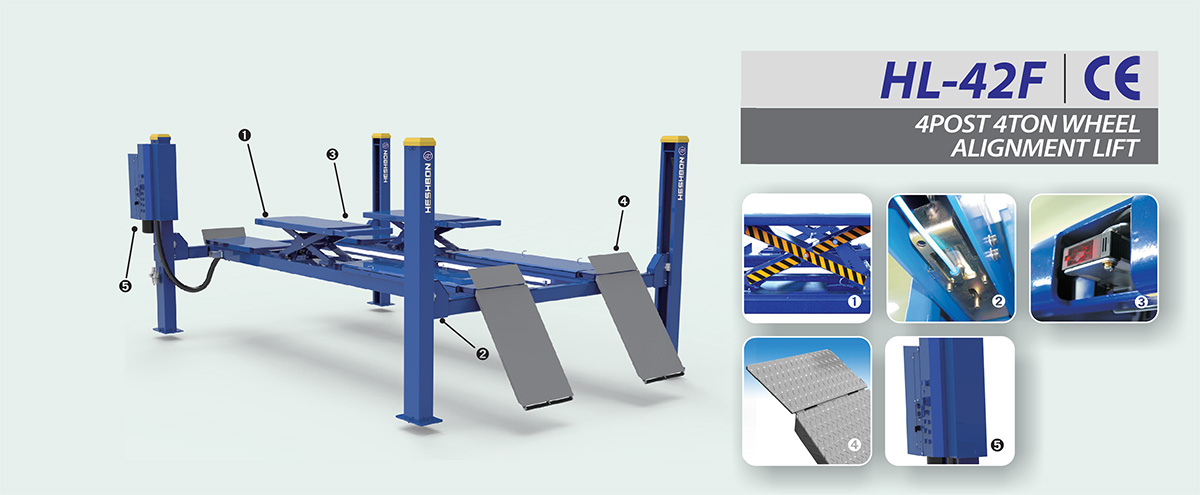

Heshbon HL-42F 4 post 4 ton wheel alignment lift

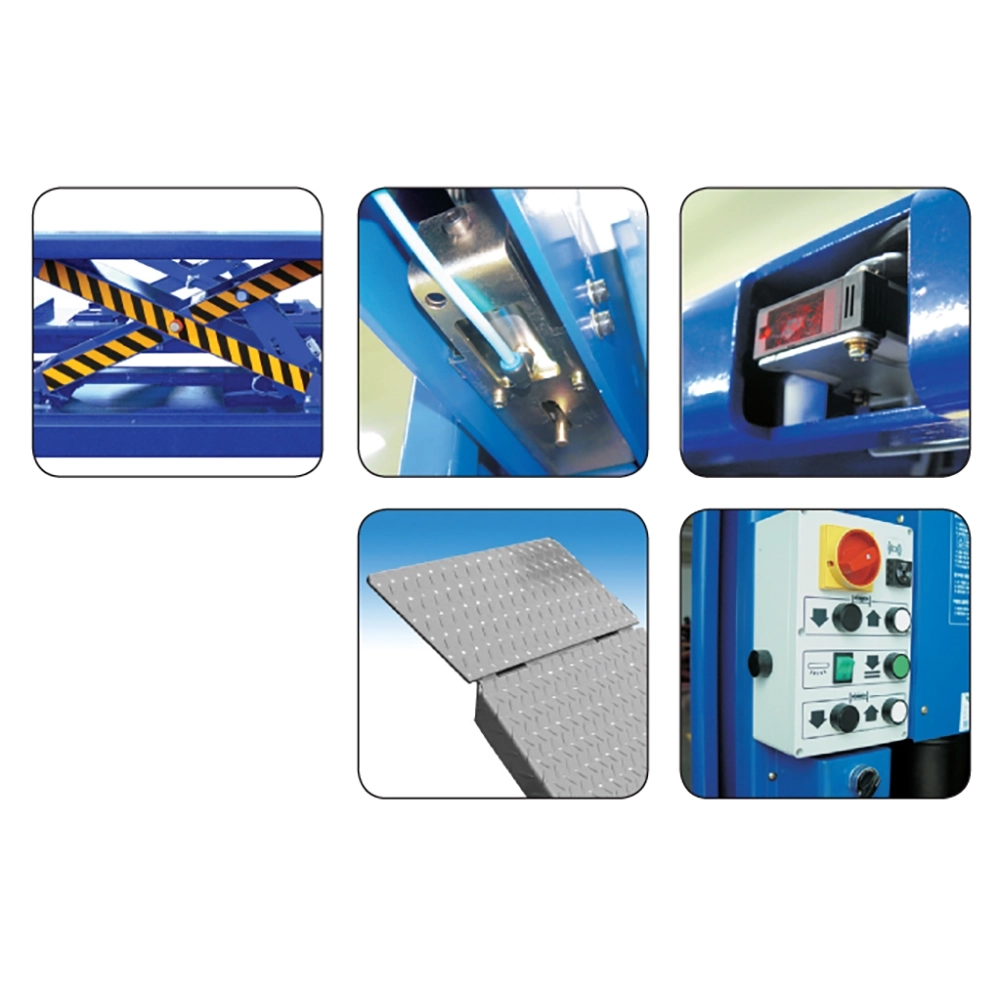

1. Outstanding Features
Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
High-resistance galvanized and pre-stretched lifting cable.
Adjustable parking ratchet rails ensure the platforms and cross member horizontal within 4 wheel alignment tolerances.
Automatic spring loaded eccentric brake system in the event of cable breakage and ensures complete stability during parking.
Self lubricated large diameter pulleys and maintenance-free bushes.
Auxiliary lift table built in the platforms for wheel free operation.
Auto-pneumatic rear slip plates locking device.
Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
Two step descending system gives full foot protection. (CE)
Hydraulic hand-pump for emergency ascend/descend. (CE)
De-synchronization detecting electronic photo-cell. (CE)
Descend alarm signal. (CE)
Lighting kits 4pcs. (OPTION)
2. Specifications
Model No.: HL-42F
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): Body: 4,000 / Jack: 3,000 kg
Max. Lifting Height (mm): Body: 1,810 mm / Jack: 390 mm

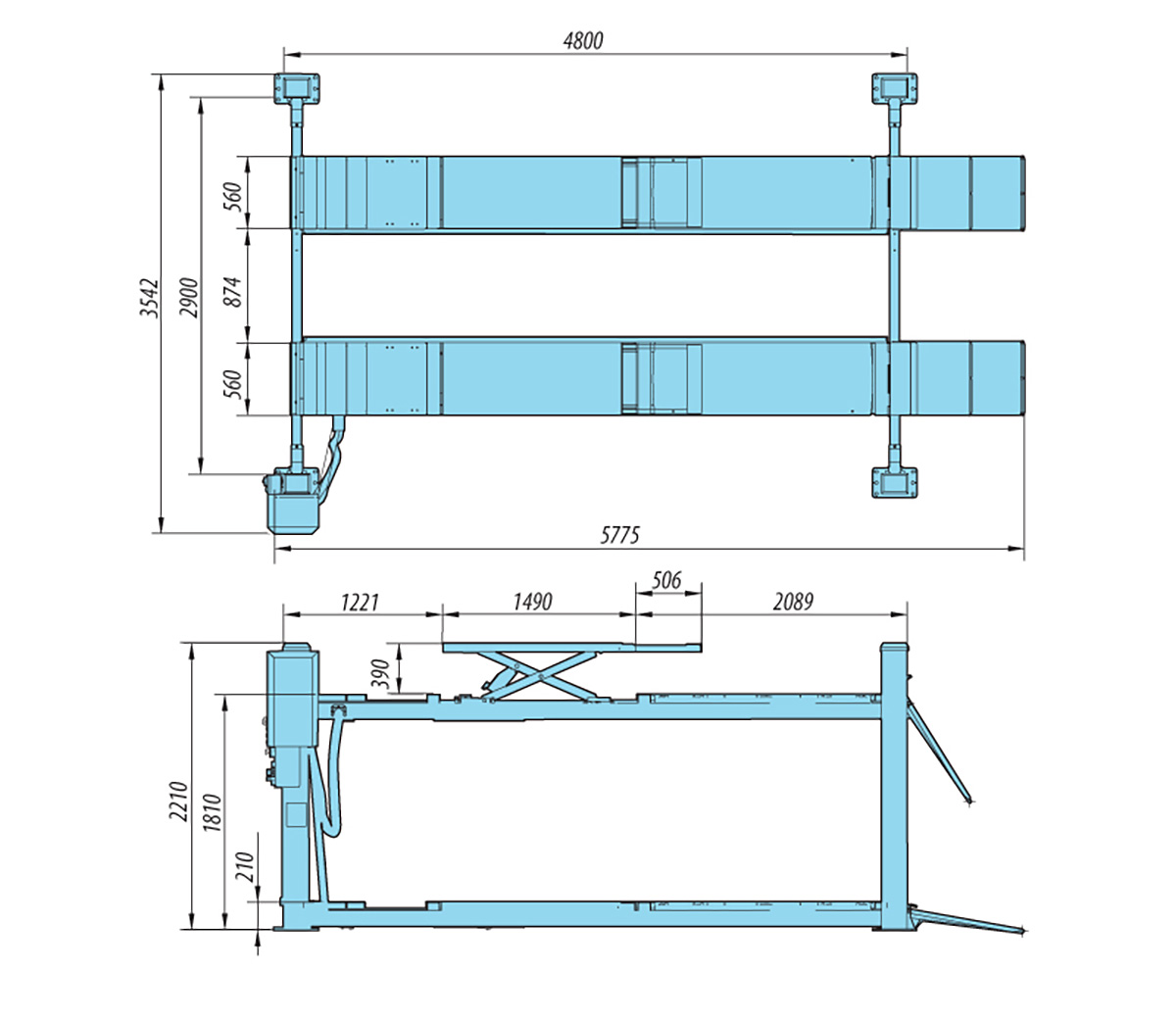

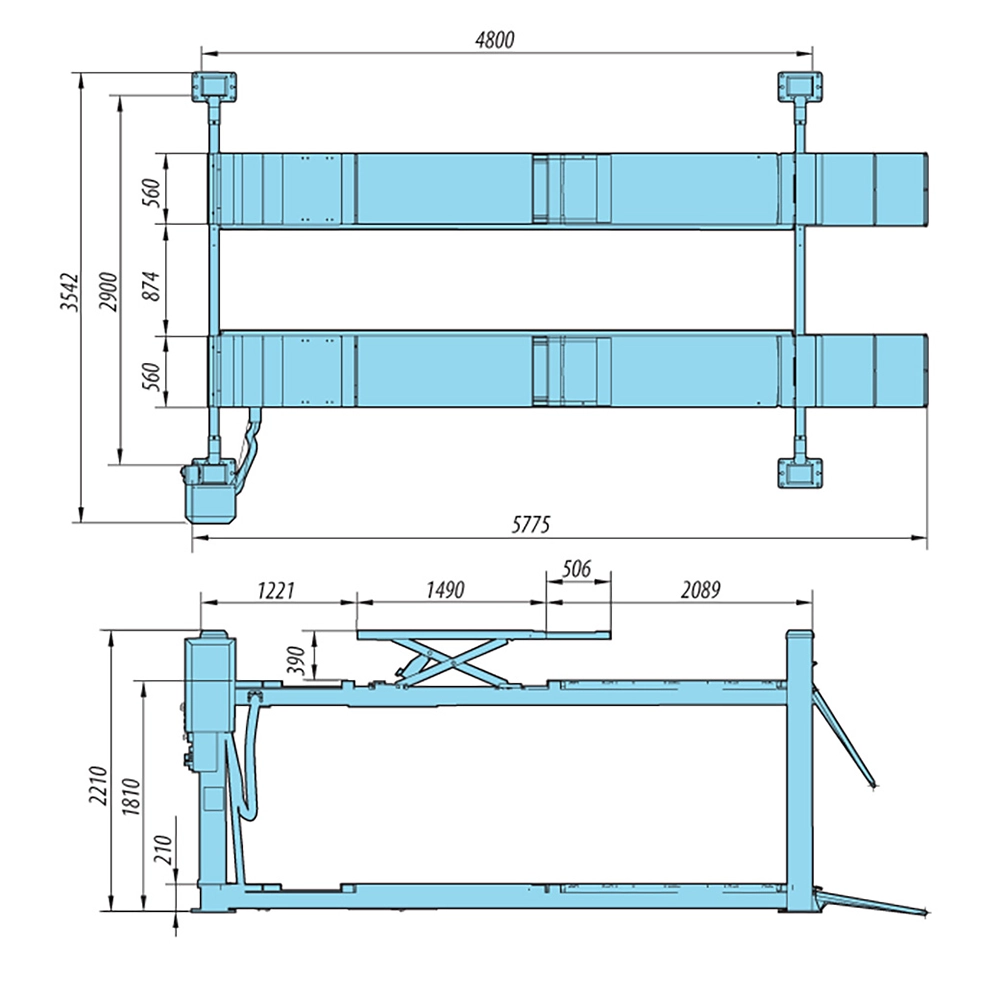

Dimension (mm): 5,775(L) x 3,542(W) x 2,210(H)
Power Supply & Motor: 3ph: 3HP, 4P, 220/380V, 50/60Hz
Net Weight: 1,950 kg
Lifting time / Lowering time:
Body: 40 ~ 60 sec. / Jack: 5 ~ 15 sec.
Body: 30 ~ 50 sec. / Jack: 5 ~ 15 sec.
3. Practical Applications
Four-wheel alignment.
Suspension inspection and repair.
Steering system service.
Brake maintenance.
Underbody inspection.
SUV and passenger vehicle servicing.
4. How to Use
Drive the vehicle onto the platforms, raise the lift to the desired height and use the integrated auxiliary jack when wheel-free operations are required. Lower the auxiliary jack before lowering the main lift.
5. Benefits
Improves wheel alignment accuracy.
Enhances workshop productivity.
Provides excellent operational safety.
Integrated wheel-free auxiliary jack.
Reliable and durable performance.
Professional workshop appearance.
6. Suitable Users
Professional automotive workshops.
Wheel alignment centers.
Authorized dealership service centers.
SUV and passenger vehicle maintenance facilities.
High-volume automotive service workshops.
7. Real Case
A dealership service center equipped with HL-42F and a 3D wheel aligner reduced wheel alignment and suspension inspection time by over 30%, improving efficiency and customer satisfaction.
8. FAQ
Question 1: Is HL-42F suitable for wheel alignment?
Answer 1: Yes, it is specifically designed for professional four-wheel alignment operations.
Question 2: What is the auxiliary jack capacity?
Answer 2: The integrated auxiliary jack has a lifting capacity of 3,000 kg.
Question 3: How does the cable-break protection system work?
Answer 3: The automatic eccentric brake system activates immediately if cable failure occurs, ensuring safety.
Question 4: What vehicles can be serviced?
Answer 4: Passenger cars, SUVs, MPVs and pickup trucks within the rated capacity.
Question 5: Can it be used for underbody maintenance?
Answer 5: Yes, the 4-post design provides excellent underbody access.
Question 6: What safety systems are included?
Answer 6: Cable-break protection, de-synchronization detection, emergency hydraulic hand pump and descent alarm system.
9. Product Summary
The HL-42F is a premium Korean-made 4-post wheel alignment lift featuring a 4-ton lifting capacity and a 3-ton auxiliary jack, offering precision, safety and reliability for modern service centers.
10. Why Choose HL-42F
Professional wheel alignment design.
Integrated 3-ton auxiliary jack.
High-strength galvanized lifting cables.
Automatic cable-break safety system.
Reliable Korean quality.
Excellent durability and stability.
Low maintenance requirements.
