Heshbon HL-42F 4 post 5 ton Platform lift

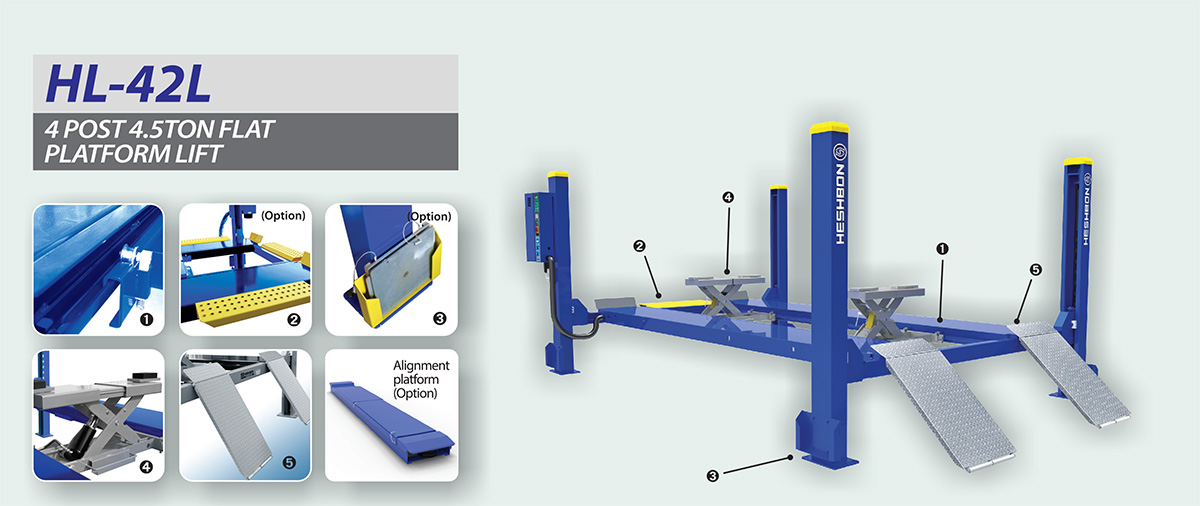

1. Outstanding Features
Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
High-resistance galvanized and pre-stretched lifting cable.
Lock release lever for the emergency situation.
Adjustable parking ratchet rails ensure the platforms and cross member horizontal within 4 wheel alignment tolerances.
Automatic spring loaded eccentric brake system in the event of cable breakage and ensures complete stability during parking.
Self lubricated large diameter pulleys and maintenance-free bushes.

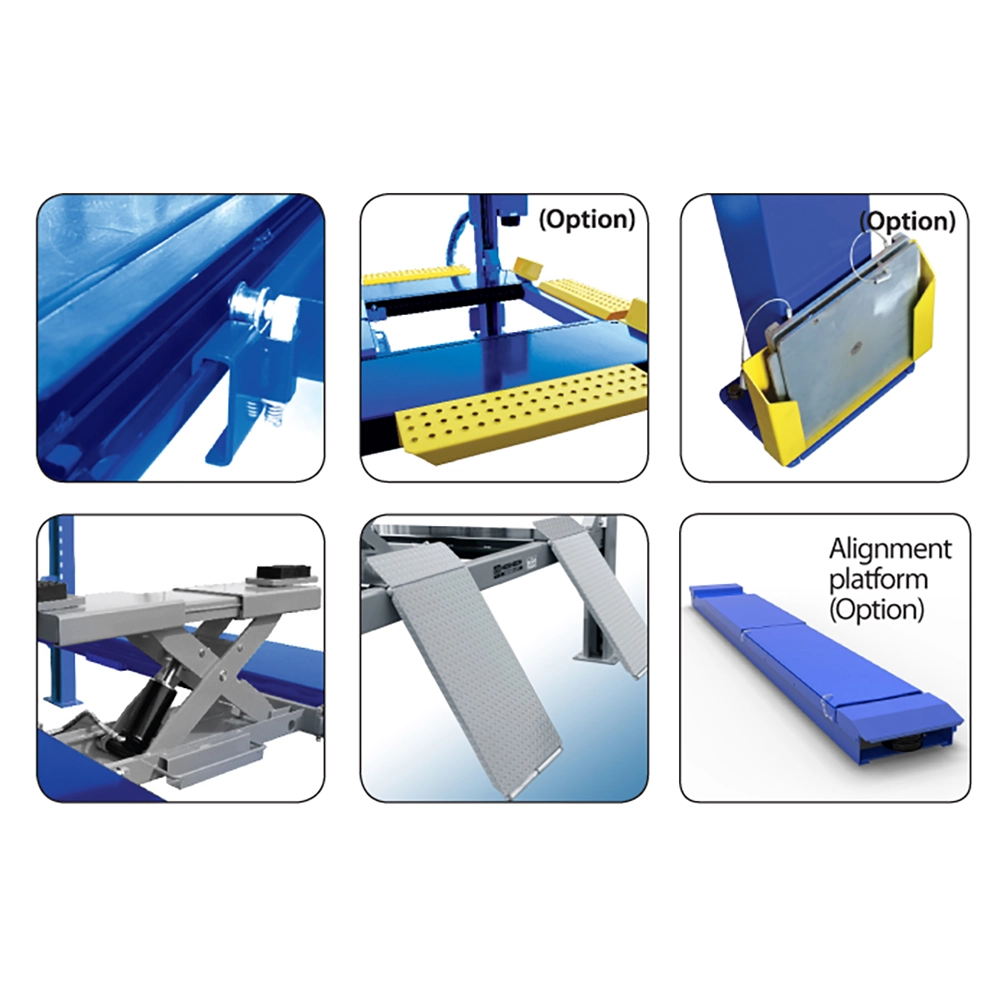

Hydraulic two-level 2 ton scissor jack.(OPTION)
Electric remote-controller.(OPTION)
Step-up plates for worker's convenience.(OPTION)
Turn-table pocker.(OPTION)
2. Specifications
Model No.: HL-42L
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): Body: 5,000 / Jack: 2,500 kg
Max. Lifting Height (mm): Body: 1,740 mm / Jack: 455 mm

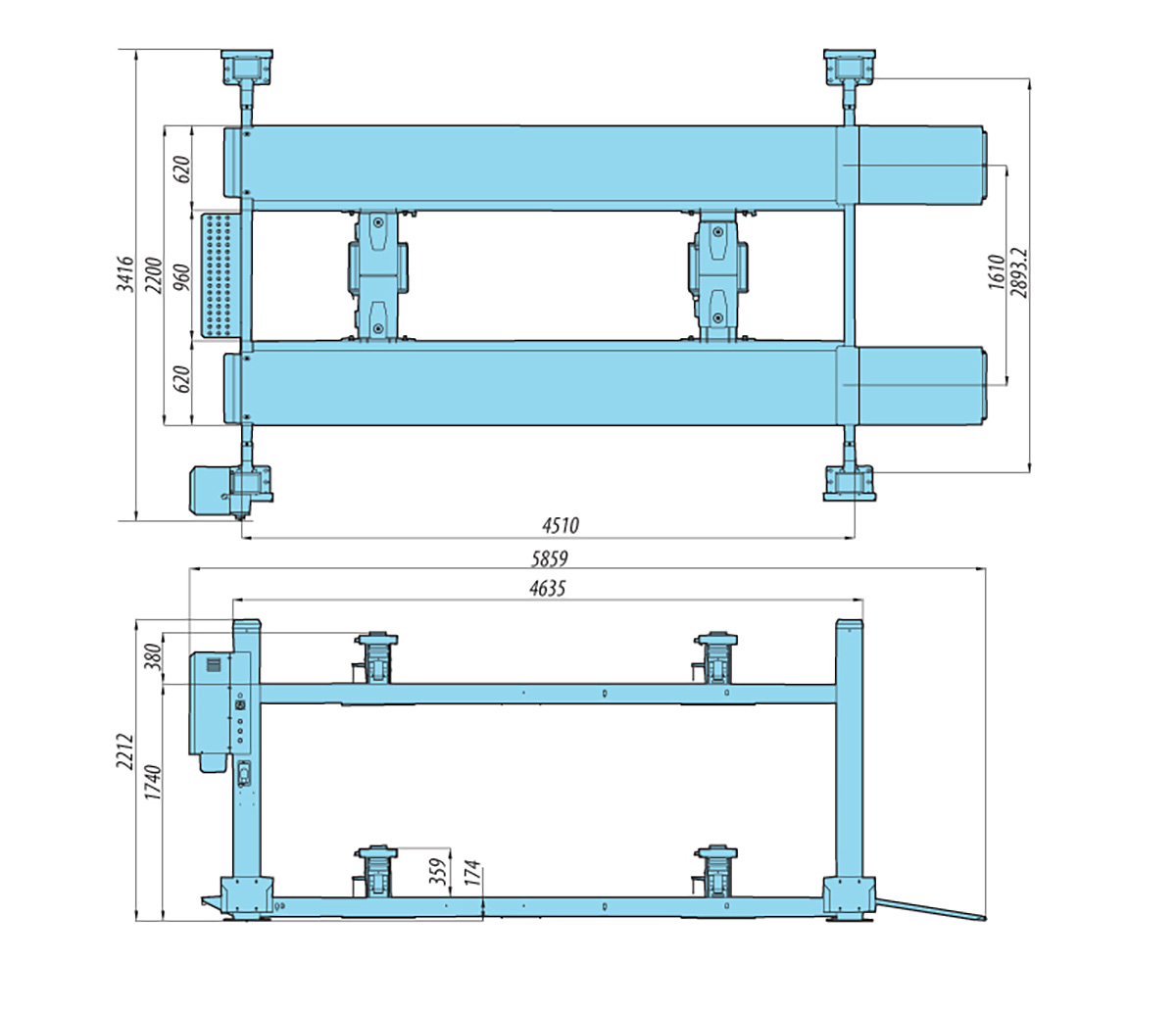

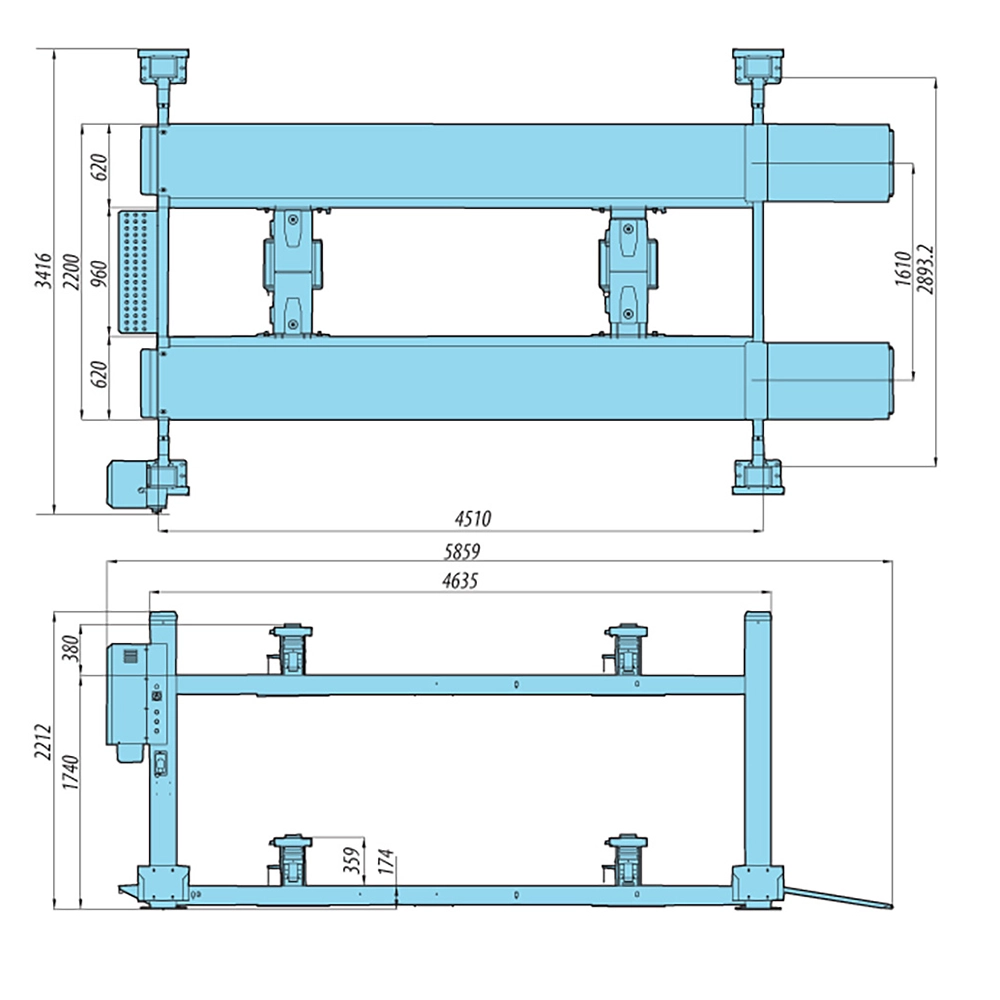

Dimension (mm): 5,859(L) x 3,416(W) x 2,212(H)
Power Supply & Motor:
1ph: 2.5HP, 4P, 220V, 50/60Hz
3ph: 2HP, 4P, 220/380V, 50/60Hz
Net Weight: 1,600 kg
Lifting time / Lowering time:
Body: 40 ~ 60 sec. / Jack: 5 ~ 15 sec.
Body: 30 ~ 50 sec. / Jack: 5 ~ 15 sec.
3. Practical Applications
Vehicle maintenance.
Underbody inspection.
Brake repair.
Suspension service.
Vehicle storage.
SUV and pickup servicing.
4. How to Use
Drive the vehicle onto the runways and raise the lift to the required working height. Use the optional hydraulic jack for wheel-free operations when needed. Lower the jack before lowering the main lift.
5. Benefits
Supports vehicles up to 5 tons.
Excellent lifting stability.
High operational safety.
Improves workshop productivity.
Suitable for vehicle storage.
Low maintenance cost.
6. Suitable Users
Automotive repair workshops.
SUV and pickup service centers.
Authorized dealership workshops.
Professional car care centers.
Medium and large automotive facilities.
7. Real Case
A professional SUV and pickup workshop installed the HL-42L to improve maintenance efficiency and vehicle storage capability, resulting in better space utilization and increased service capacity.
8. FAQ
Question 1: What is the lifting capacity of HL-42L?
Answer 1: The main lift capacity is 5,000 kg.
Question 2: Is it suitable for SUVs and pickups?
Answer 2: Yes, it is designed for passenger vehicles, SUVs, MPVs and pickup trucks.
Question 3: Is the hydraulic jack included?
Answer 3: No, the 2.5-ton hydraulic scissor jack is optional.
Question 4: How does the cable-break protection work?
Answer 4: The automatic eccentric brake locks the lift immediately if cable failure is detected.
Question 5: Can it be used for vehicle storage?
Answer 5: Yes, it is ideal for vehicle storage in garages and showrooms.
Question 6: Does it support single-phase power?
Answer 6: Yes, it supports both single-phase and three-phase power supplies.
9. Product Summary
The HL-42L is a premium Korean-made 5-ton 4-post platform lift that combines durability, safety and versatility, making it an excellent choice for professional automotive workshops.
10. Why Choose HL-42L
5-ton lifting capacity.
Supports single-phase and three-phase power.
High-strength galvanized lifting cables.
Automatic cable-break protection.
Optional hydraulic scissor jack.
Reliable Korean engineering.
Long service life.
Low maintenance requirements.
