h2Heshbon HL-48H 4 post 8.5 ton flat platform lift
Price: Call
Share
|
|
|
Mr. Vui
0944755799
| | |
Mr. Định
0968776499
| | |
Mr. Thuyên
0963829640
| | |
Nhân Võ Đình (HCM)
0967161443
| | |
Lê Thị Thanh Hương
0979898586
Heshbon HL-48H 4 post 8.5 ton flat platform lift

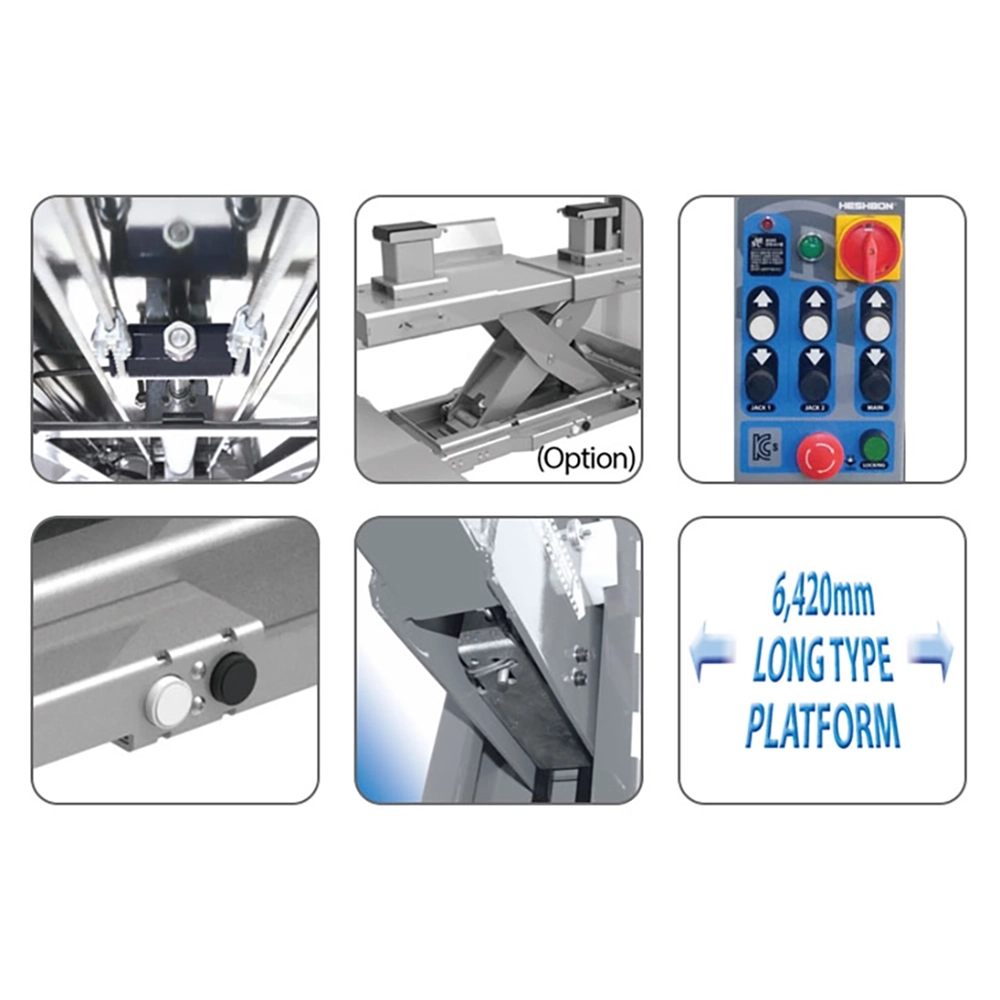

1. Outstanding Features
Cylinder & Power pack ability for max.10Ton Capacity.
Auto control for center rolling jack.
Hydraulic cylinder located in the fixed platform and it thus perfectly protected.
High resistance galvanized and pre-stretched lifting cable.
Lock realized lever for the emergency situation.
Adjustable parking ratchet rails ensure the platforms and cross members horizontal within 4 wheel alignment tolerances.
Automatic spring loaded eccentric brake system in the event of cable breakage and ensure complete.
Self-lubricated large diameter pulleys and maintenance-free bushes.
Hydraulic two-level 5ton scissor jack. (option)
Electric remote-controller. (option).
2. Specifications
Model No.: HL-48H
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): Body: 8,500kgs / Jack: 5,000kg
Min/Max. Lifting Height (mm): Body: 1,750 mm / Jack: 595 mm

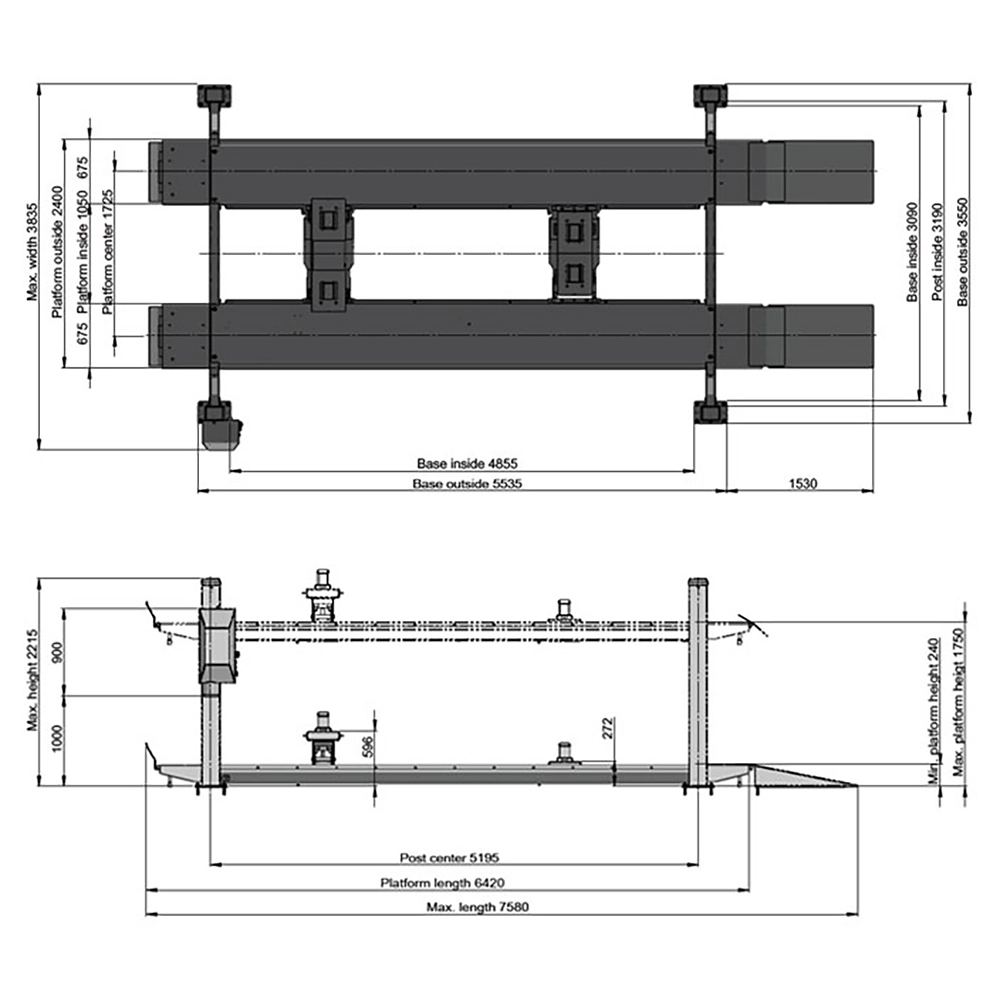

Dimension (mm): 7580(L) x 3835(W) x 2215(H)
Power Supply & Motor: 3ph : 4HP, 220/380V, 50/60Hz
Net Weight: 2,590kg
Lifting time / Lowering time:
Body: 75~85 sec. / Jack: 5~15 sec.
Body: 50~60 sec. / Jack: 10~20 sec.
3. Practical Applications
Commercial vehicle maintenance.
Light truck servicing.
Bus maintenance.
Suspension inspection.
Brake repair and maintenance.
Underbody inspection and repair.
4. How to Use
Drive the vehicle onto the platforms, raise the lift to the desired working height and use the optional 5-ton hydraulic scissor jack when wheel-free operations are required. Lower the jack before lowering the main lift.
5. Benefits
Supports heavy-duty vehicles.
Improves maintenance efficiency.
Provides excellent operational safety.
Stable lifting performance.
Reduces service time.
Enhances workshop capability.
6. Suitable Users
Commercial vehicle workshops.
Bus maintenance centers.
Truck repair facilities.
Authorized commercial vehicle service centers.
Large automotive service workshops.
7. Real Case
A commercial vehicle service center installed the HL-48H to handle light trucks and buses, significantly improving workshop productivity and reducing vehicle downtime.
8. FAQ
Question 1: What is the lifting capacity of HL-48H?
Answer 1: The main lift capacity is 8,500 kg.
Question 2: Is it suitable for commercial vehicles?
Answer 2: Yes, it is specifically designed for trucks, buses and commercial vehicles.
Question 3: What is the capacity of the optional jack?
Answer 3: The optional hydraulic scissor jack can lift up to 5,000 kg.
Question 4: How does the cable-break protection work?
Answer 4: The automatic eccentric brake system locks the lift immediately if cable failure occurs.
Question 5: Can it be used for underbody maintenance?
Answer 5: Yes, the flat platform design provides excellent vehicle support and access.
Question 6: What type of workshops is it suitable for?
Answer 6: It is ideal for truck workshops, commercial vehicle service centers and heavy-duty maintenance facilities.
9. Product Summary
The HL-48H is a premium Korean-made heavy-duty 4-post lift with an 8.5-ton lifting capacity, offering exceptional strength, safety and reliability for commercial vehicle maintenance.
10. Why Choose HL-48H
Heavy-duty 8.5-ton capacity.
Designed for commercial vehicles.
Supports system capacity up to 10 tons.
High-strength galvanized lifting cables.
Automatic cable-break safety protection.
Optional 5-ton hydraulic jack.
Durable Korean engineering.
Long service life.
11. Related Products
Heshbon HL-42F
Heshbon HL-42L
Heshbon HL-55F
Heshbon HL-6050W
Heshbon HL-6050Y
