h2Heshbon HL-53X 4 ton Wheel alignment scissor lift
Price: Call
Share
|
|
|
Mr. Vui
0944755799
| | |
Mr. Định
0968776499
| | |
Mr. Thuyên
0963829640
| | |
Nhân Võ Đình (HCM)
0967161443
| | |
Lê Thị Thanh Hương
0979898586

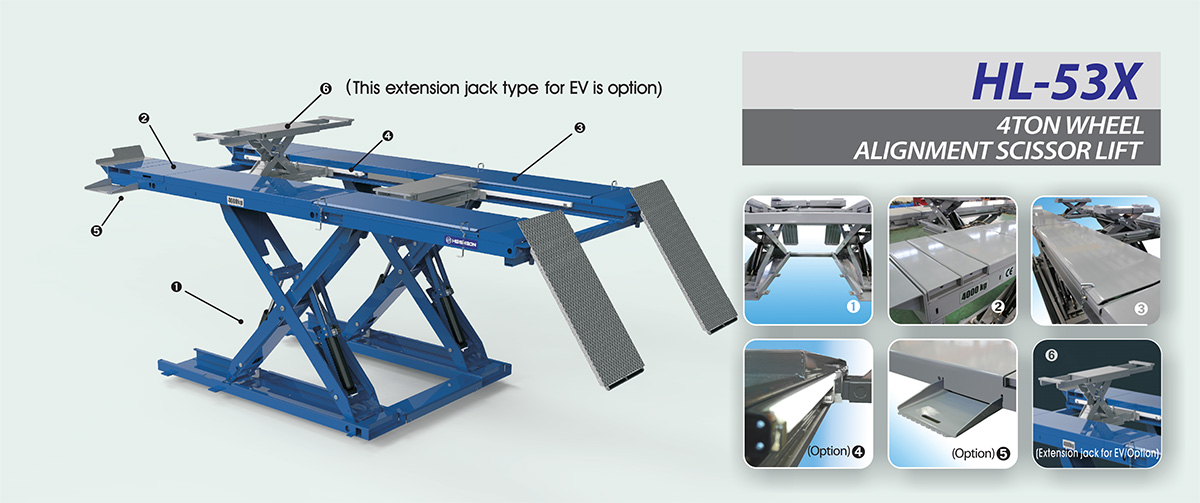

Heshbon HL-53X 4 ton Wheel alignment scissor lift

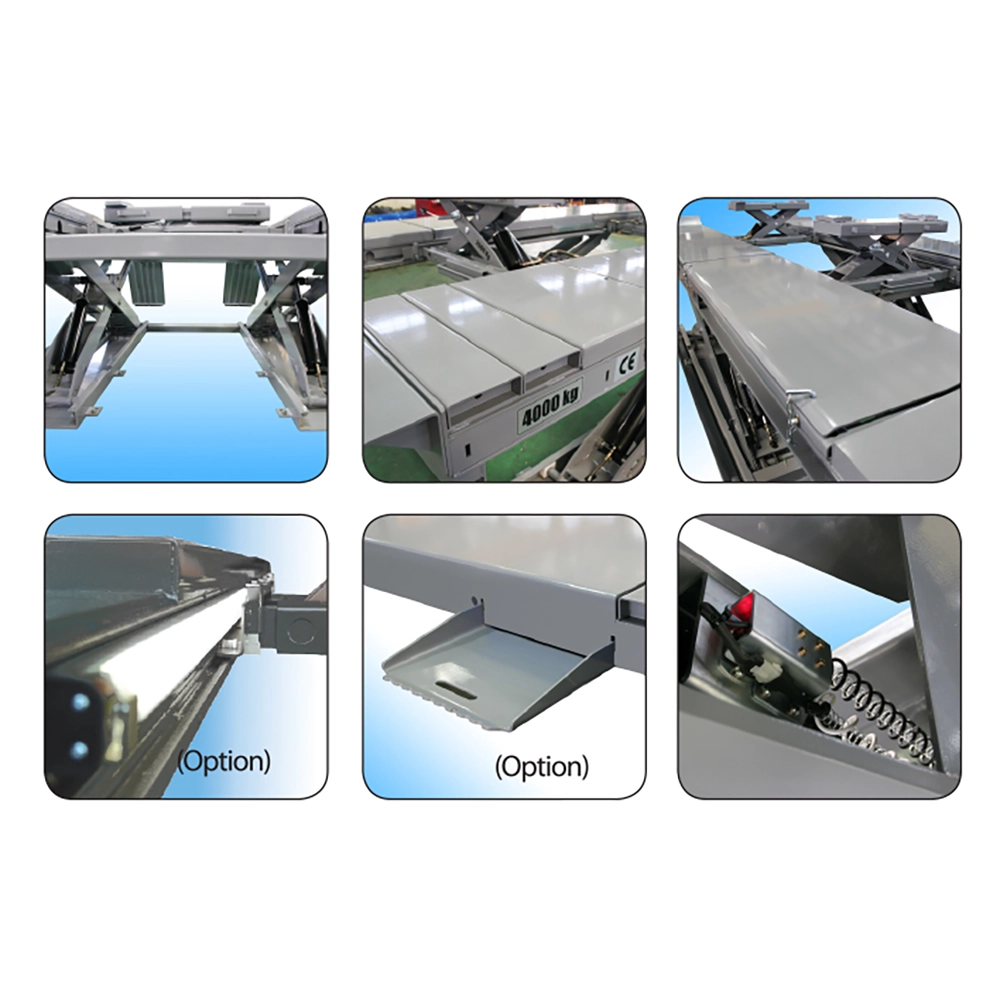

1. Key Features
Master & Slave system composed by high-performed durable hydraulic cylinders.
Air operated locking device.
Easy synchronization control system by special hydraulic valves.
Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
Applicable to both in/above-ground mount.
Pit frame for in-ground type. (Option)
Step-up plate for worker’s convenience. (Option)
Lighting set, 4 units. (Option)
Two-step descent system gives full foot protection.
2. Specifications
Model No.: HL-53X
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): 4,000 kg / 2,000 kg
Max. Lifting Height (mm): Body: 1,900 mm / Jack: 530 mm

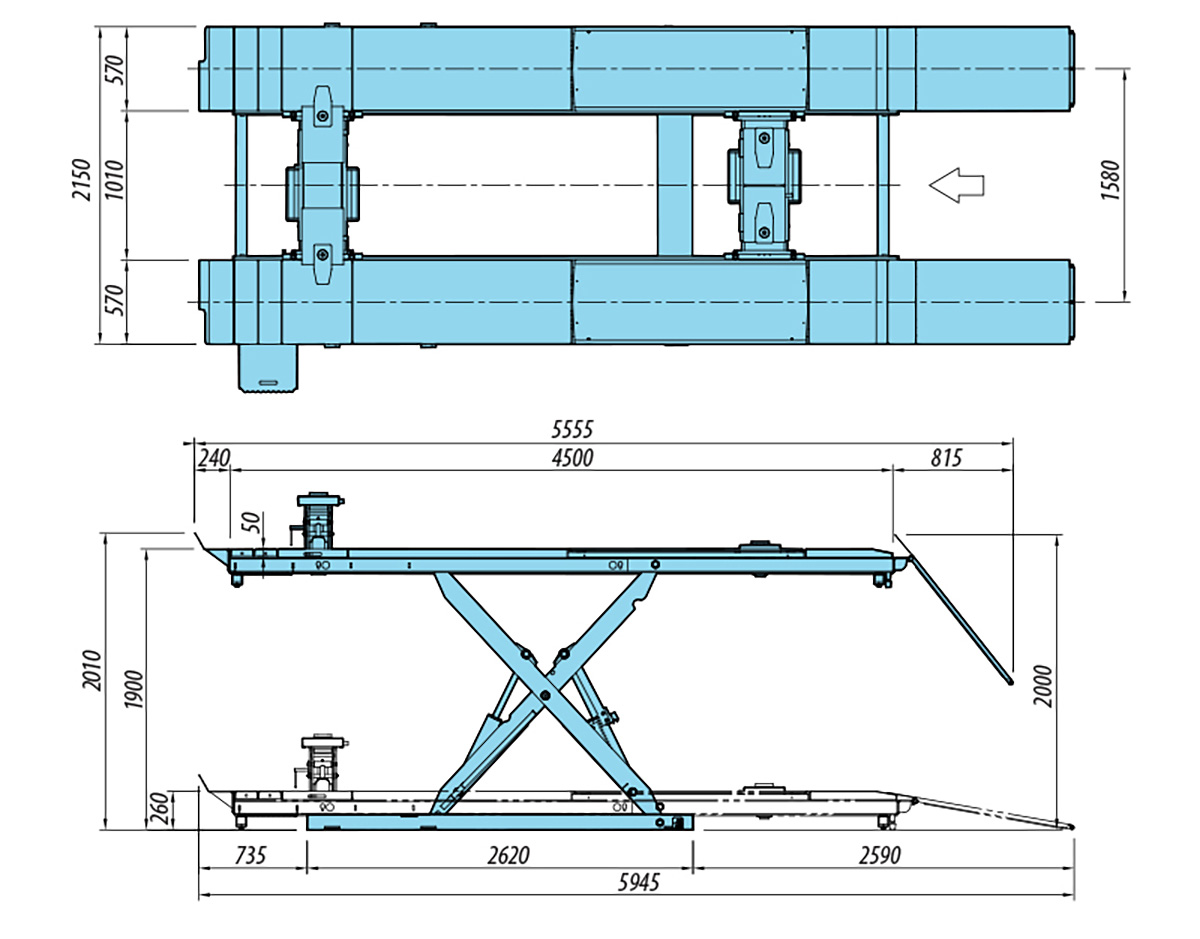

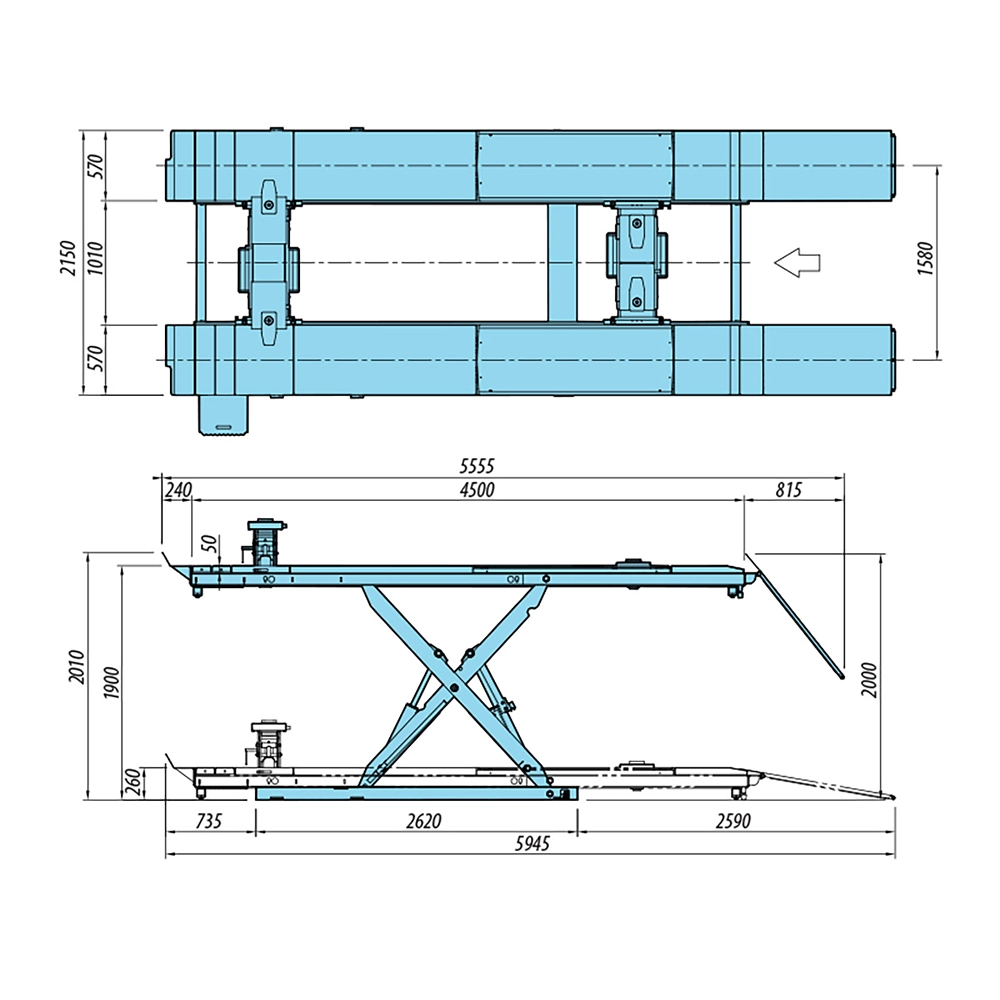

Dimension (mm): 5,945 (L) × 2,150 (W) × 260 (H)
Power Supply & Motor:
1ph, 2.5HP, 4P, 220V, 60Hz
3ph, 2HP, 4P, 220/380V, 50/60Hz
Net Weight: 2,150 kg (without control box)
Lifting time / Lowering time:
Body: 40–60 sec / Jack: 5–15 sec
Body: 35–45 sec / Jack: 10–30 sec
3. Practical Applications
Four-wheel alignment.
Suspension inspection and repair.
Steering system service.
Tire inspection and adjustment.
Undercarriage maintenance.
Professional automotive service operations.
4. How to Use
Drive the vehicle onto the lift platforms, raise the main lift to the desired working height, use the secondary jack when wheel-free service is required, complete maintenance procedures and lower the lift safely after work.
5. Benefits
Improves wheel alignment accuracy.
Increases workshop productivity.
Enhances technician safety.
Reduces service time.
Suitable for passenger cars and SUVs.
Improves workshop professionalism.
6. Suitable Users
Wheel alignment centers.
General automotive repair workshops.
Premium vehicle service centers.
Authorized dealership workshops.
Professional maintenance facilities.
7. Real Case
An authorized automotive service center integrated the HL-53X with a 3D wheel alignment system, reducing alignment service time by over 30% while improving accuracy and customer satisfaction.
8. FAQ
Question 1: Is HL-53X designed for wheel alignment?
Answer 1: Yes, it is specifically designed for professional four-wheel alignment operations.
Question 2: What is the lifting capacity?
Answer 2: The main platform lifts 4,000 kg and the secondary jack lifts 2,000 kg.
Question 3: Can it be installed above-ground or in-ground?
Answer 3: Yes, both installation options are available.
Question 4: What is the purpose of the secondary jack?
Answer 4: It lifts the wheels off the platforms for repair and alignment procedures.
Question 5: Is it suitable for SUVs?
Answer 5: Yes, it supports sedans, SUVs and light commercial vehicles up to 4 tons.
Question 6: How does the safety locking system work?
Answer 6: The pneumatic locking mechanism automatically secures the lift during operation.
9. Product Summary
The HL-53X is a premium Korean wheel alignment scissor lift featuring a 4-ton main lifting capacity and a 2-ton secondary jack, providing outstanding performance for alignment and underbody service applications.
10. Why Choose HL-53X
Korean manufacturing quality.
Dedicated wheel alignment design.
Integrated 2-ton wheel-free jack.
Reliable hydraulic synchronization system.
Above-ground and in-ground installation options.
High safety and accuracy.
11. Related Products
Heshbon HL-53XV
Heshbon HL-53XF
Heshbon HL-32D
Heshbon HL-40D
Heshbon HL-300X
