Heshbon HL-55F 5.5 ton Wheel alignment scissor lift

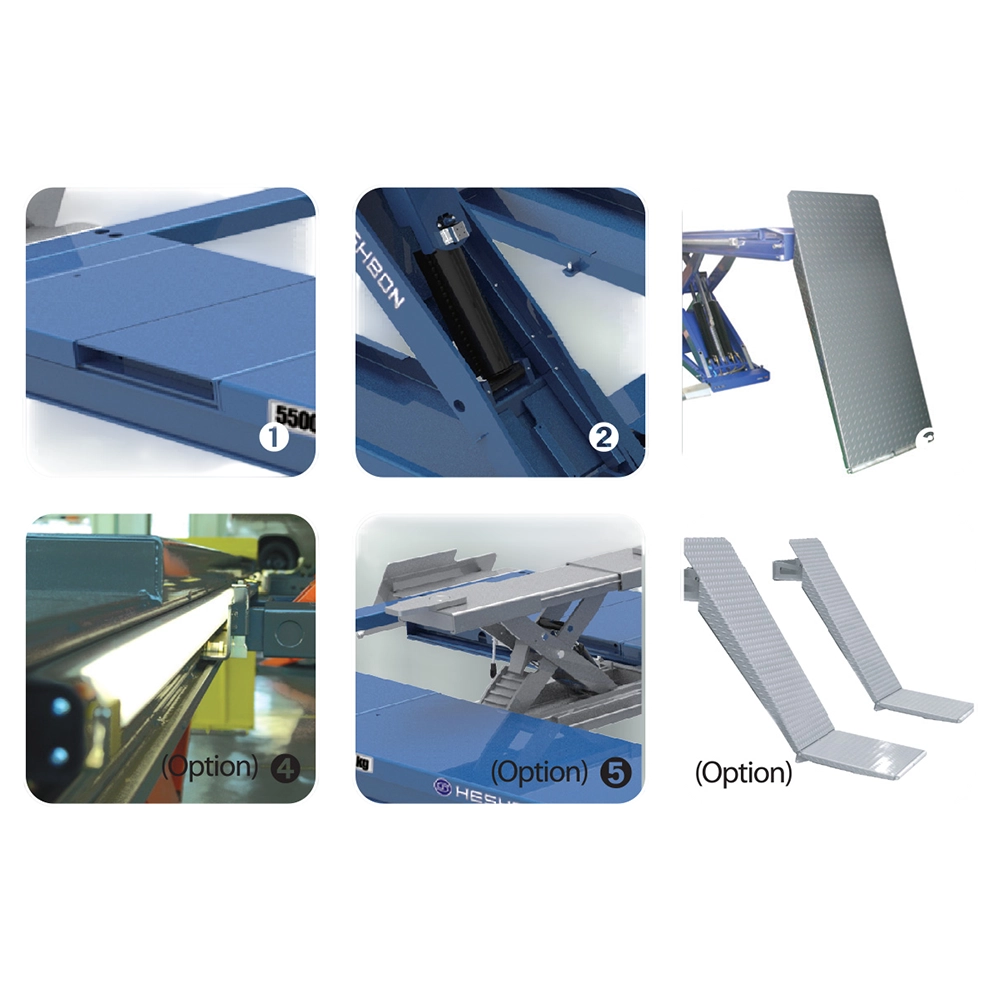

1. Key Features
High-Performed durable hydraulic cylinders composed by double pressure seals.
Master & Slave cylinder synchronization system ensure the High-Performed synchronization.
Air cylinder operated locking device.
Easy synchronization control system by special hydraulic valves.
Auxiliary lift table built in the platforms for wheel free operation.
Auto-pneumatic rear slip plates locking device.
Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
Locking position sensor for stabilize platform level.
Applicable to both in/above-ground mount.
Lighting kits 4pcs. (OPTION)
Descend alarm signal.
Descend alarm signal.
Pit frame for in-ground type. (OPTION)
Two step descending system gives full foot protection.
Ramp extensions for low chassis vehicle. (OPTION)
2. Specifications
Model No.: HL-55F
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): 5,500 kg / 3,000 kg
Max. Lifting Height (mm): Body: 2,020 mm / Jack: 375 mm

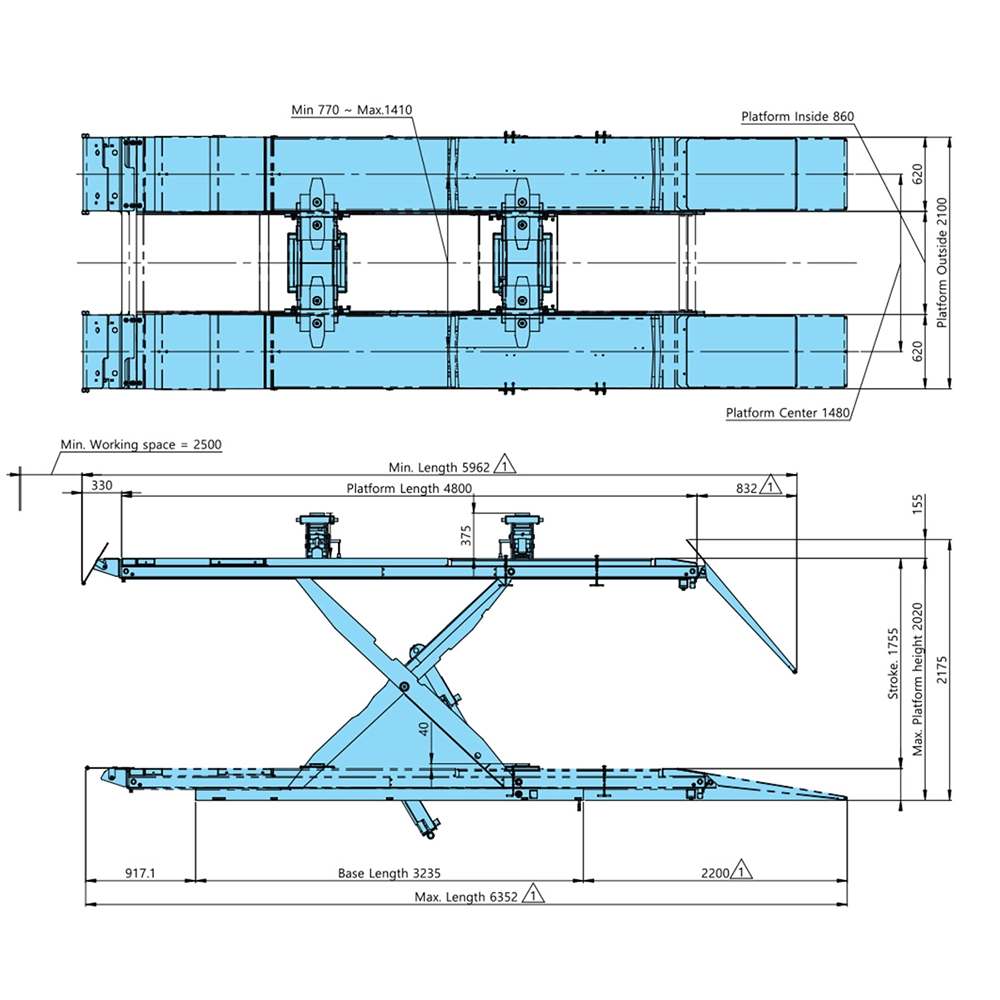

Dimension (mm): 6,352 (L) × 2,100 (W) × 265 (H)
Power Supply & Motor: 3ph, 3HP/4HP, 4P, 220/380V, 50/60Hz
Net Weight: 2,900 kg (without control box)
Lifting time / Lowering time:
Body: 40 ~ 60 sec. / Jack: 5 ~ 15 sec.
Body: 45 ~ 60 sec. / Jack: 10 ~ 30 sec.
3. Practical Applications
Four-wheel alignment.
Steering system service.
Suspension inspection and repair.
SUV and light truck maintenance.
Undercarriage inspection.
Brake and tire servicing.
4. How to Use
Drive the vehicle onto the lift, raise the main platform to the required height, use the auxiliary jack for wheel-free operations and safely lower the lift after maintenance is completed.
5. Benefits
Improves alignment accuracy.
Supports heavy vehicles up to 5.5 tons.
Enhances workshop productivity.
Improves technician safety.
Reduces service time.
Creates a professional workshop environment.
6. Suitable Users
Professional repair workshops.
Wheel alignment centers.
SUV and MPV service centers.
Authorized dealership service facilities.
Commercial vehicle maintenance workshops.
7. Real Case
A dealer service center specializing in SUVs and pickup trucks installed the HL-55F and reduced wheel alignment service time by more than 35% while improving operational efficiency.
8. FAQ
Question 1: What vehicles can HL-55F lift?
Answer 1: Passenger cars, SUVs, MPVs, pickups and light commercial vehicles up to 5,500 kg.
Question 2: What is the auxiliary jack capacity?
Answer 2: The integrated auxiliary jack lifts up to 3,000 kg.
Question 3: Is HL-55F designed for wheel alignment?
Answer 3: Yes, it is specifically designed for professional four-wheel alignment operations.
Question 4: Can it be installed above-ground or in-ground?
Answer 4: Yes, both installation options are supported.
Question 5: How does the safety locking system work?
Answer 5: A pneumatic locking system and lock position sensors ensure stable platform operation.
Question 6: What type of workshop is it suitable for?
Answer 6: Professional garages, dealer service centers and high-volume wheel alignment facilities.
9. Product Summary
The HL-55F is a premium Korean-made wheel alignment scissor lift with a 5.5-ton main platform and a 3-ton auxiliary jack, offering outstanding performance, safety and reliability.
10. Why Choose HL-55F
Premium Korean quality.
5.5-ton heavy-duty capacity.
Integrated 3-ton wheel-free auxiliary jack.
Accurate Master & Slave synchronization.
Professional wheel alignment design.
Above-ground and in-ground installation options.
Long-lasting durability and safety.
11. Related Products
Heshbon HL-53X
Heshbon HL-53XF
Heshbon HL-53XV
Heshbon HL-32D
Heshbon HL-300X
