Heshbon HL-6050W 6 Ton Semi- Scissor Lift

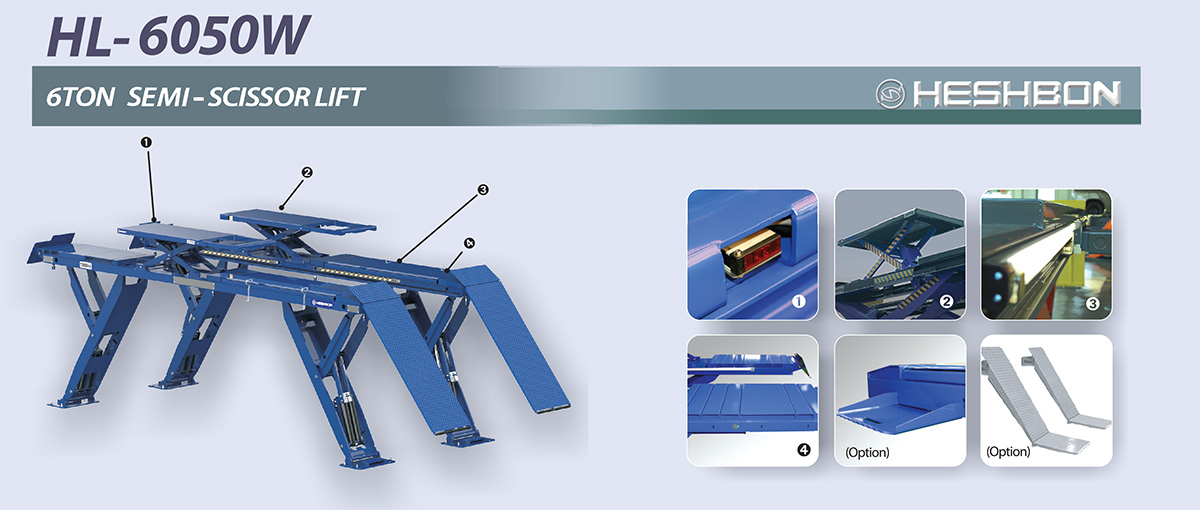

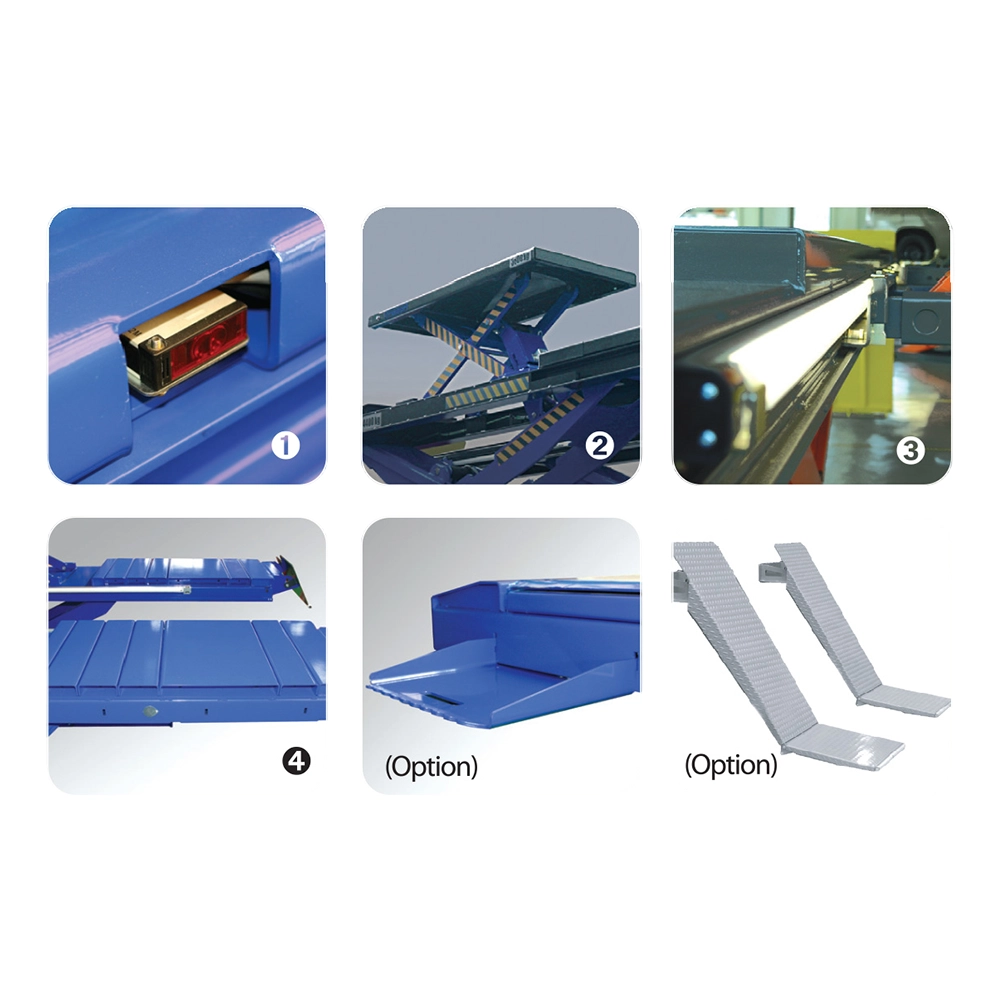

1. Outstanding Features
Accessible from All Directions (Front, Rear, Left, Right)
Ensures efficient workflow and optimized work area.
4-Point Lifting Support Structure
Provides superior rigidity and minimizes deflection compared to X-type lifts.
8-Cylinder Hydraulic Synchronization System
Delivers stable and precise hydraulic synchronization.
Integrated Cylinder Orifice
Controls lowering speed and enhances operational safety.
Adjustable Front Turntables & Rear Automatic Locking Side-Slip Device
Enables accurate wheel alignment and reliable rear positioning.
Built-in LED Work Lights
Improves visibility and overall work efficiency.
Optional Air Jack
Available for expanded lifting versatility.
Secondary Safety Device (Anti-Foot Trap)
Ensures additional safety during lowering operations.
2. Specifications
Model No: HL-6050W
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): 5,000 kg / 3,000 kg
Max.Lifting Height (mm): Body : 1,920 mm / Jack : 394 mm

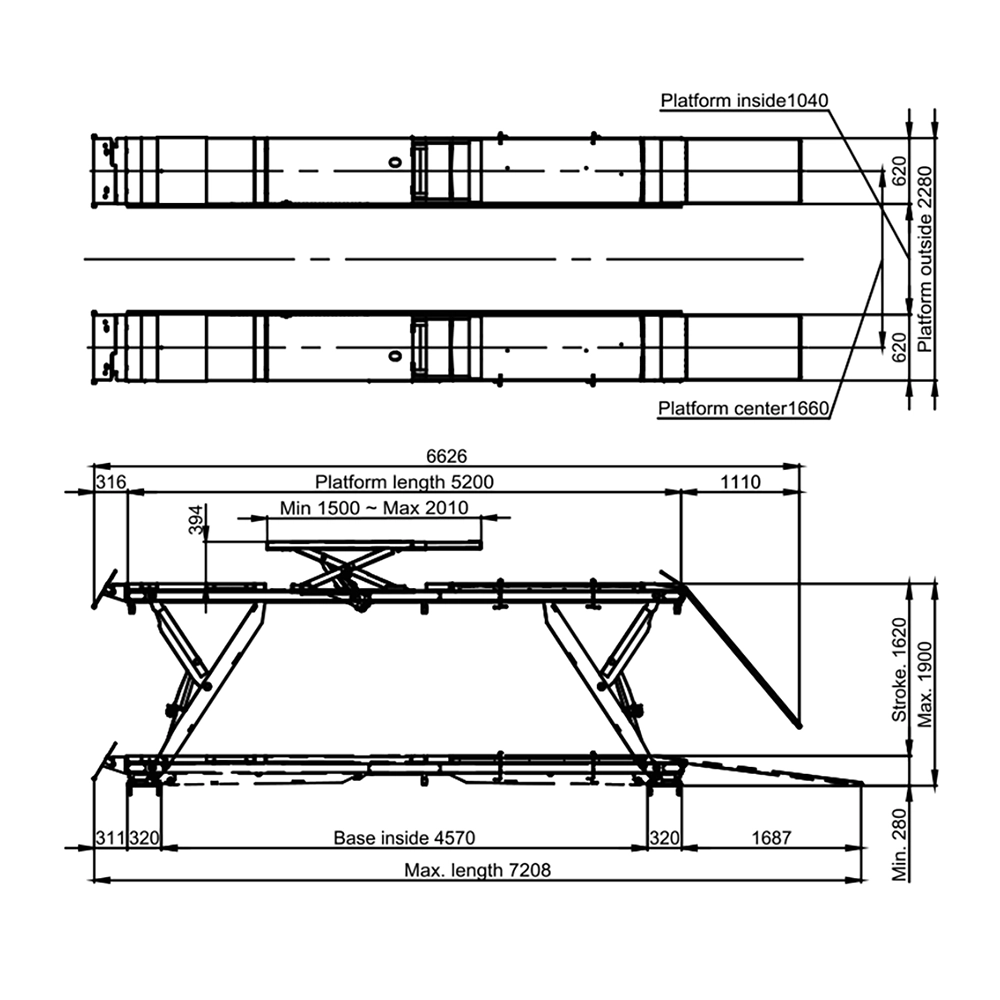

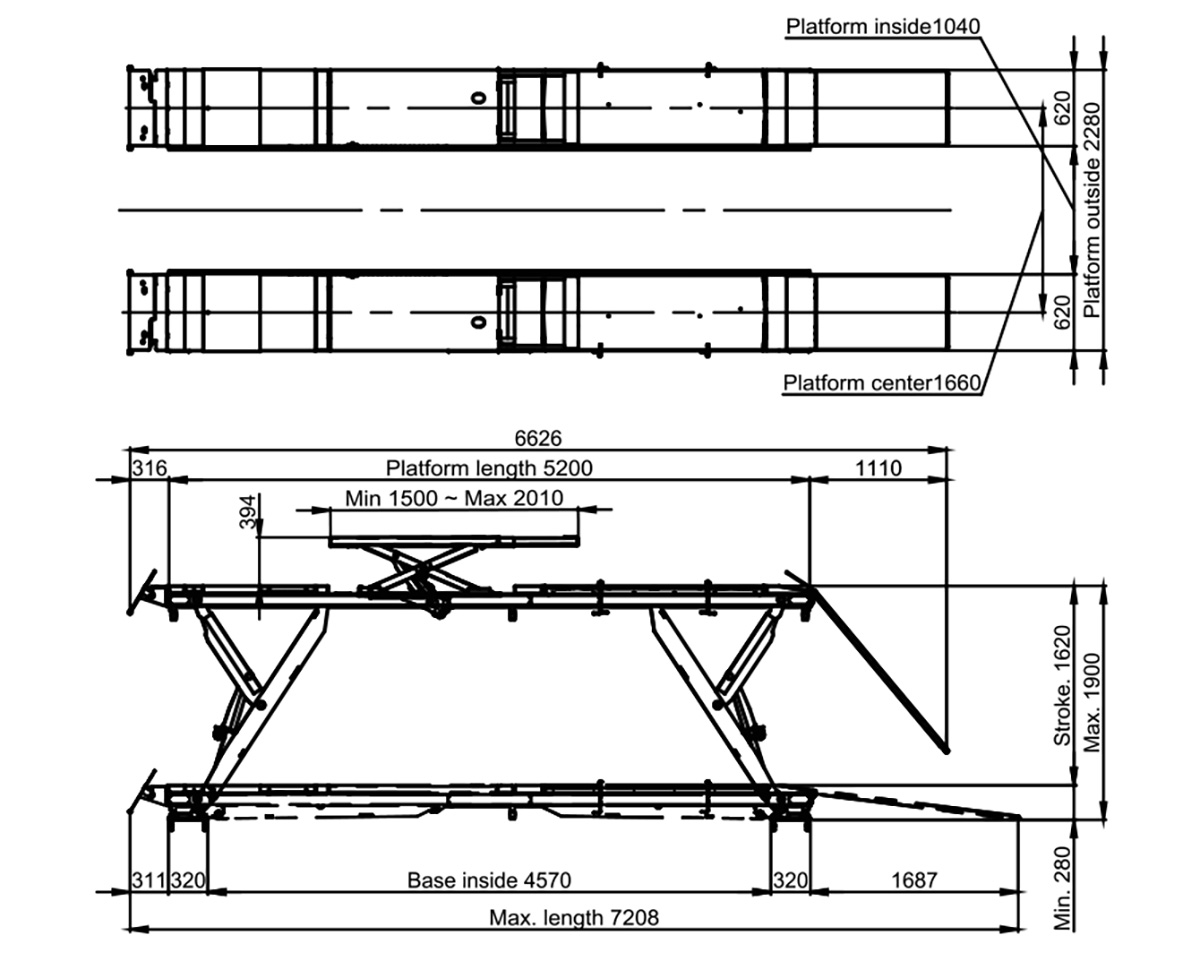

Dimension (mm): 7,208(L) x 2,280(W) x 280(H)
Power Supply & Motor: 3ph 3HP x 4P x 220/380V x 50/60Hz
Net Weight: 3,100kg (without control box)
Lifting time / Lowering time:
Body : 60~70 sec. / Jack : 10~20 sec.
Body : 40~70 sec. / Jack : 10~30 sec.
3. Practical Applications
Four-wheel alignment.
Suspension service and repair.
Steering system maintenance.
Brake and underbody inspection.
SUV, MPV and pickup maintenance.
Routine vehicle servicing.
4. How to Use
Position the vehicle on the platforms, raise the main lift to the desired height, use the auxiliary jack for wheel-free operations and lower the lift safely after completing maintenance tasks.
5. Benefits
Improves workshop productivity.
Provides all-direction vehicle access.
Enhances lifting stability.
Supports accurate wheel alignment.
Improves technician safety.
Reduces maintenance time.
6. Suitable Users
Professional automotive workshops.
Wheel alignment centers.
Authorized dealership service centers.
SUV and pickup maintenance facilities.
High-volume automotive service workshops.
7. Real Case
A dealership service center installed HL-6050W for wheel alignment and underbody service operations, reducing maintenance time by approximately 30% while improving service quality.
8. FAQ
Question 1: Is HL-6050W suitable for wheel alignment?
Answer 1: Yes, it includes front turntables and rear slip plates specifically designed for wheel alignment.
Question 2: What is the lifting capacity?
Answer 2: The main lift capacity is 5,000 kg and the auxiliary jack capacity is 3,000 kg.
Question 3: What are the benefits of the 8-cylinder synchronization system?
Answer 3: It provides accurate, stable and reliable lifting synchronization.
Question 4: Can technicians access the vehicle from all directions?
Answer 4: Yes, the lift allows access from the front, rear, left and right sides.
Question 5: What is the function of the built-in LED lights?
Answer 5: They improve visibility and working efficiency beneath the vehicle.
Question 6: What vehicles can be serviced on HL-6050W?
Answer 6: Passenger cars, SUVs, MPVs, pickups and light commercial vehicles within the rated capacity.
9. Product Summary
The HL-6050W is a premium Korean-made semi-scissor lift featuring a rigid 4-point lifting structure, 8-cylinder synchronization system and integrated wheel-free jack, making it ideal for professional wheel alignment and underbody service applications.
10. Why Choose HL-6050W
Premium Korean engineering.
Advanced 4-point lifting structure.
8-cylinder hydraulic synchronization.
Integrated 3-ton auxiliary jack.
Wheel alignment ready.
Built-in LED work lighting.
Enhanced safety protection system.
Long-lasting durability and performance.
