h2Heshbon HL-6050Y 6 Ton Semi- Scissor Lift
Price: Call
Share
|
|
|
Mr. Vui
0944755799
| | |
Mr. Định
0968776499
| | |
Mr. Thuyên
0963829640
| | |
Nhân Võ Đình (HCM)
0967161443
| | |
Lê Thị Thanh Hương
0979898586

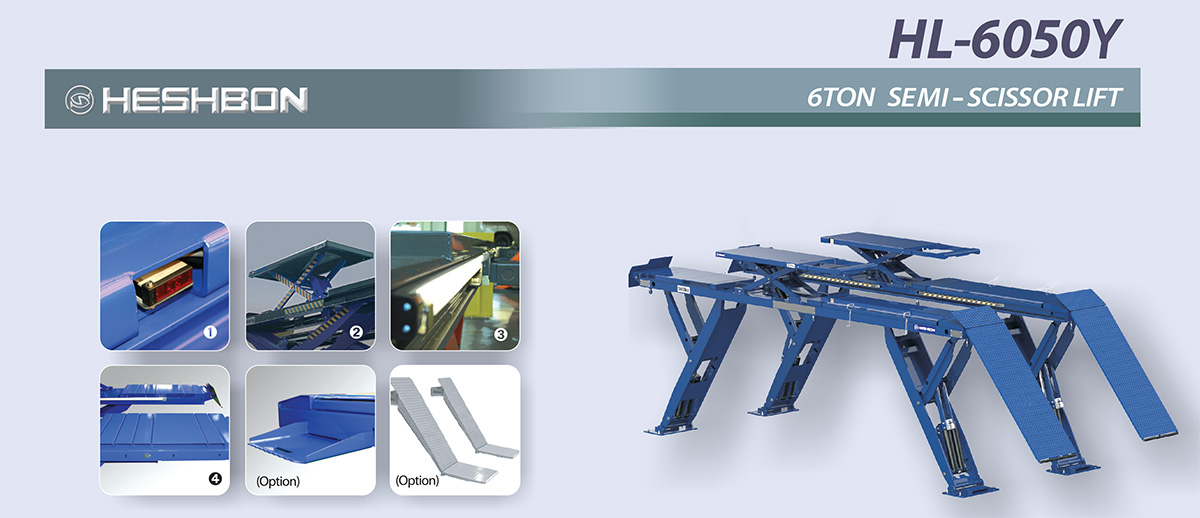

Heshbon HL-6050Y 6Ton Semi- Scissor Lift
1. Outstanding Features

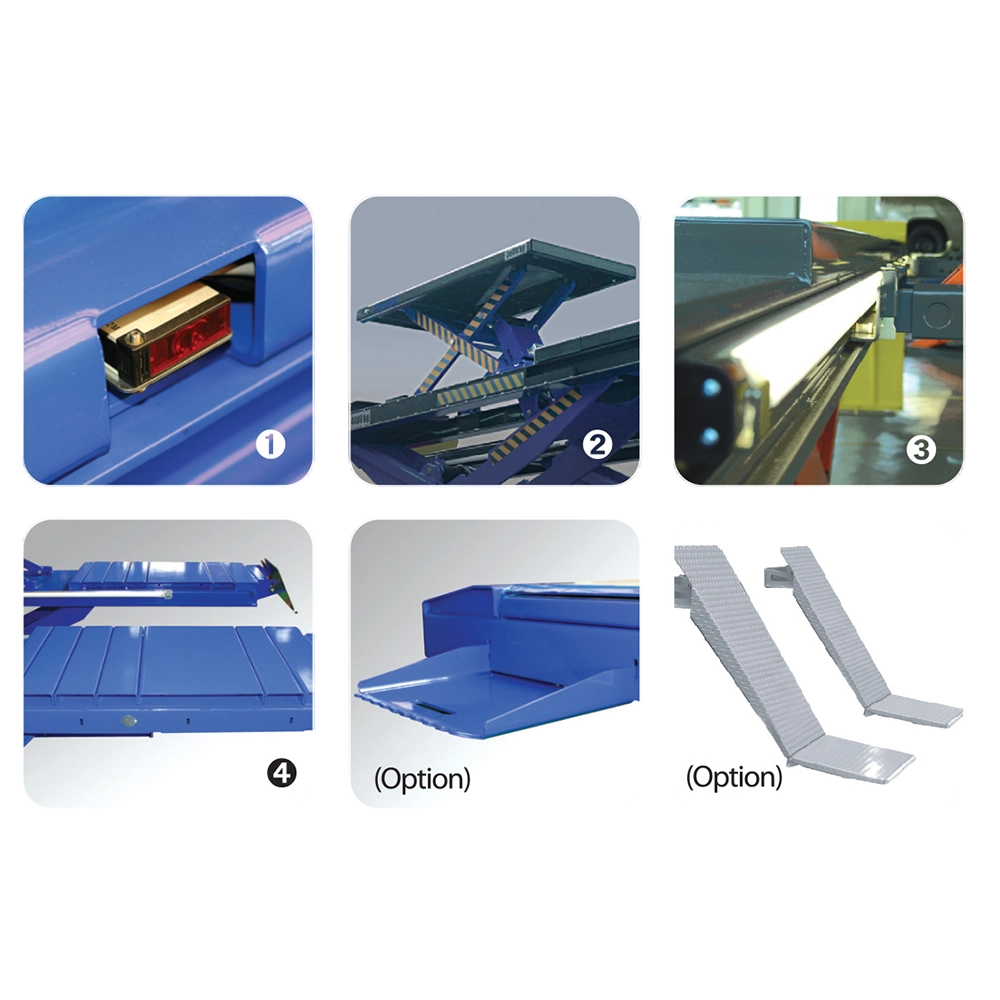

Accessible from All Directions (Front, Rear, Left, Right)
Ensures efficient workflow and optimized work area.
4-Point Lifting Support Structure
Provides superior rigidity and minimizes deflection compared to X-type lifts.
8-Cylinder Hydraulic Synchronization System
Delivers stable and precise hydraulic synchronization.
Integrated Cylinder Orifice
Controls lowering speed and enhances operational safety.
Adjustable Front Turntables & Rear Automatic Locking Side-Slip Device
Enables accurate wheel alignment and reliable rear positioning.
Built-in LED Work Lights
Improves visibility and overall work efficiency.
Optional Center Rolling Jack
Available for expanded lifting versatility.
Secondary Safety Device (Anti-Foot Trap)
Ensures additional safety during lowering operations.
2. Specifications
Model No: HL-6050Y
Brand: Heshbon
Made in Korea
Lifting Capacity (kg): 5,000 kg / 3,000 kg
Max.Lifting Height (mm): Body : 1,920 mm / Jack : 394 mm

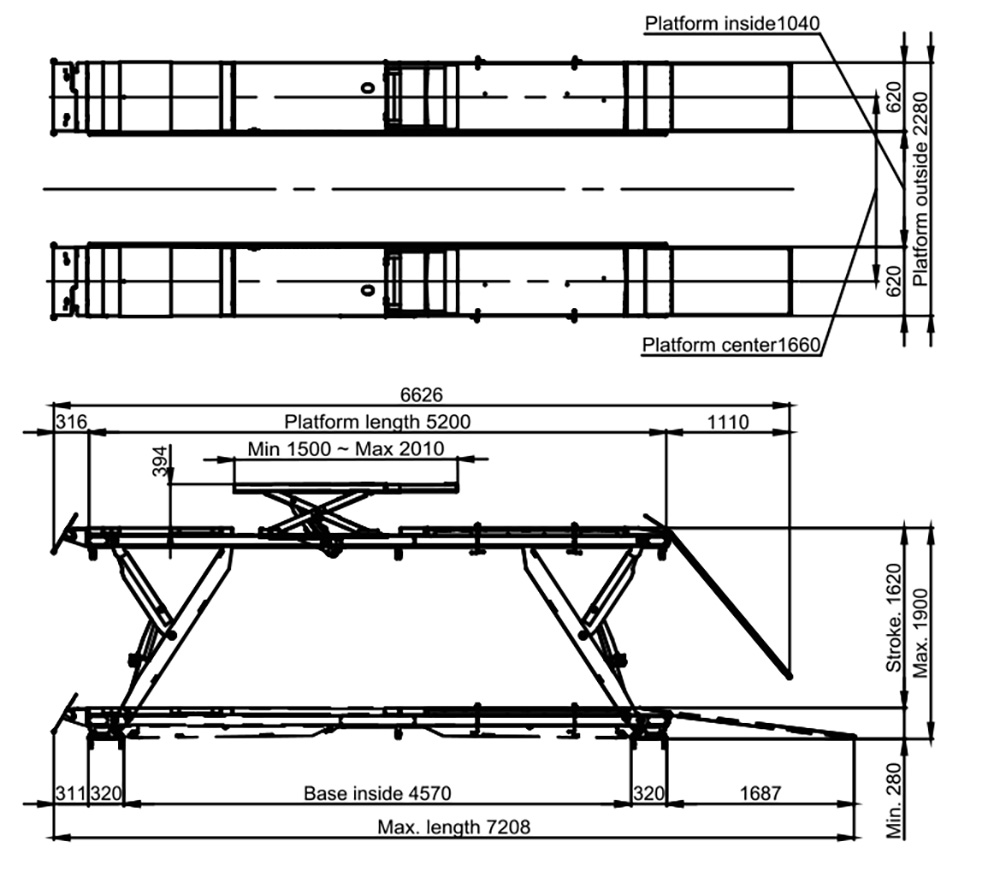

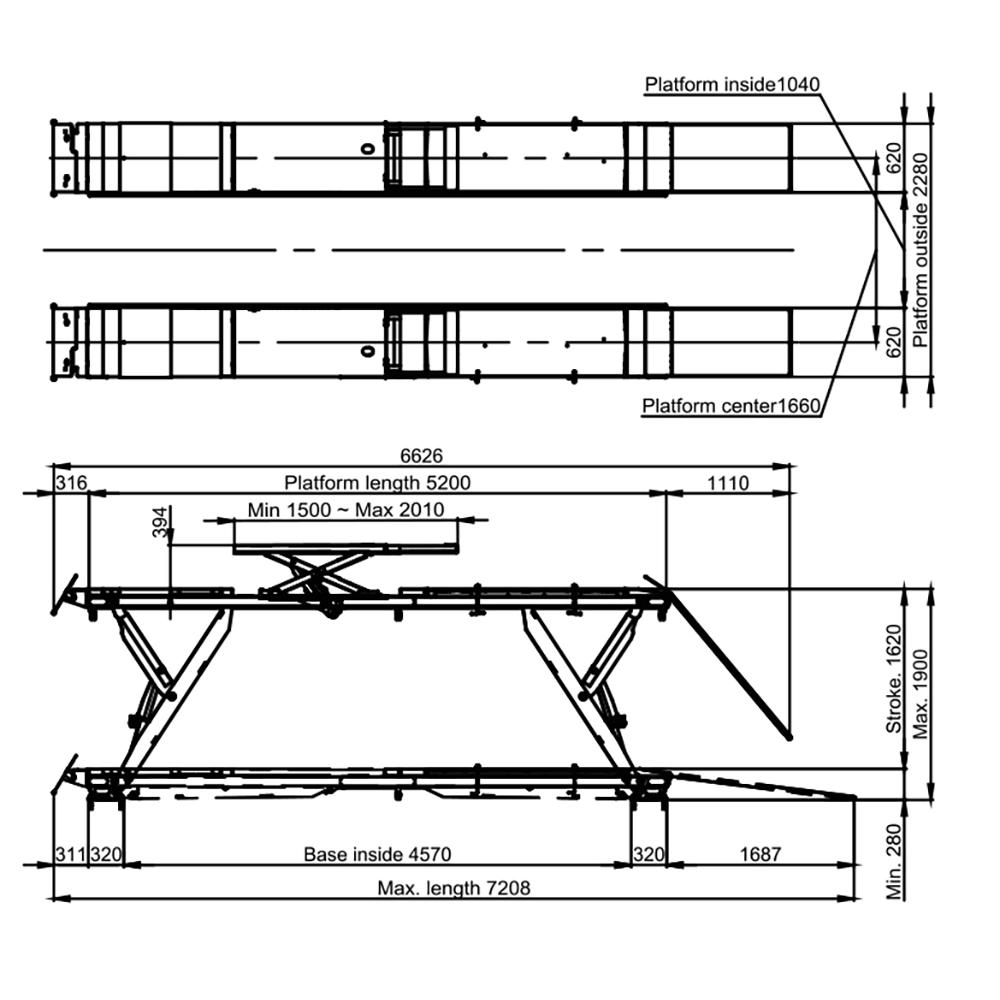

Dimension (mm): 7,208(L) X 2,280(W) X 280(H)
Power Supply & Motor: 3ph 3HP X 4P X 220/380V X 50/60Hz
Net Weight: 3,100kg (without control box)
Lifting time / Lowering time: Body : 60~70 sec. / Jack : 10~20 sec.
Body : 40~70 sec. / Jack : 10~30 sec.
3. Practical Applications
Four-wheel alignment.
Suspension inspection and repair.
Steering system maintenance.
Brake service and underbody repair.
SUV, MPV and pickup maintenance.
Routine automotive servicing.
4. How to Use
Drive the vehicle onto the platforms, raise the lift to the desired working height and use the optional center rolling jack when wheel-free service is required. Lower the jack and lift safely after maintenance work is completed.
5. Benefits
Provides all-direction vehicle access.
Improves wheel alignment accuracy.
Enhances workshop productivity.
Offers superior lifting stability.
Improves technician safety.
Reduces service time.
6. Suitable Users
Professional automotive workshops.
Wheel alignment centers.
SUV and pickup service facilities.
Authorized dealership service centers.
High-volume maintenance workshops.
7. Real Case
A wheel alignment center equipped the HL-6050Y with a 3D alignment system and reduced suspension inspection time by approximately 30% while improving service quality.
8. FAQ
Question 1: Is HL-6050Y suitable for wheel alignment?
Answer 1: Yes, it is specifically designed for wheel alignment operations.
Question 2: What is the lifting capacity?
Answer 2: The main lift capacity is 5,000 kg and the optional center rolling jack capacity is 3,000 kg.
Question 3: What is the advantage of the 4-point lifting structure?
Answer 3: It provides greater rigidity and less deflection than traditional X-type scissor lifts.
Question 4: What are the benefits of the 8-cylinder synchronization system?
Answer 4: It ensures smooth, accurate and stable lifting performance.
Question 5: What is the purpose of the built-in LED work lights?
Answer 5: They improve visibility and working efficiency underneath the vehicle.
Question 6: What vehicles can be serviced on HL-6050Y?
Answer 6: Passenger cars, SUVs, MPVs, pickups and light commercial vehicles within the rated capacity.
9. Product Summary
The HL-6050Y is a premium Korean-made semi-scissor lift offering outstanding stability, accessibility and wheel alignment functionality for modern automotive workshops.
10. Why Choose HL-6050Y
Premium Korean manufacturing quality.
Rigid 4-point lifting design.
8-cylinder hydraulic synchronization system.
Optional center rolling jack.
Wheel alignment ready.
Integrated LED work lighting.
Enhanced safety protection system.
Long service life and reliable performance.
