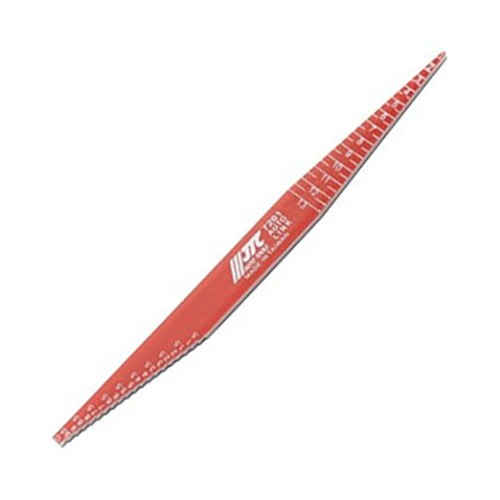

JTC-7201 Double-End Taper and Gap Gauge (0.5 mm)

JTC-7201 Double-End Taper and Gap Gauge (0.5 mm)

1. Key Features:

• Dual Function Design: Measures both taper and gap ranges with high precision.
• Wide Measurement Ranges:
  • Taper: 1~13 mm.

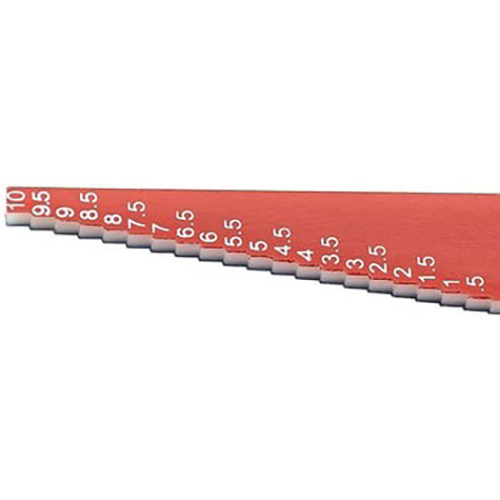

  • Gap: 1~10 mm with 0.5 mm graduations.
• Premium Material: Made from fiber-reinforced plastics (FRP), ensuring durability and lightweight performance.

2. Technical Specifications:

• Taper Measurement Range: 1~13 mm.
• Gap Measurement Range: 1~10 mm.
• Graduation: 0.5 mm.
• Material: Fiber-reinforced plastics (FRP).

3. Practical Applications:

• Repair and Maintenance: Used for checking taper and gaps in mechanical parts.
• Automotive Industry: Assists in inspecting and adjusting vehicle components.
• Manufacturing: Ensures precision during assembly of mechanical components.

4. Instructions for Use:

1. Measure Taper: Insert the taper gauge into the desired area and read the measurement directly on the gauge.
2. Measure Gap: Use the gap end to measure the distance between parts.
3. Storage: Clean the tool after use and store it in a dry place to maintain the FRP material.
