1. Key Features:

• Specially designed for disassembling heavy-duty truck ball joints.
• Compatible with a 4.5T hydraulic cylinder and JTC-CP351 coupler for enhanced efficiency.
• Can be combined with an optional air pump, such as JTC-8P120, for quicker operations.
• Interchangeable handle and claw positions for flexible use in various ball joint positions.
• Versatile jaw opening sizes: 26mm, 32mm, 42mm, 56mm, catering to a wide range of applications.

2. Technical Specifications:

• Type: Changeable hydraulic ball joint separator for heavy-duty trucks.
• Jaw opening: 26mm, 32mm, 42mm, 56mm.

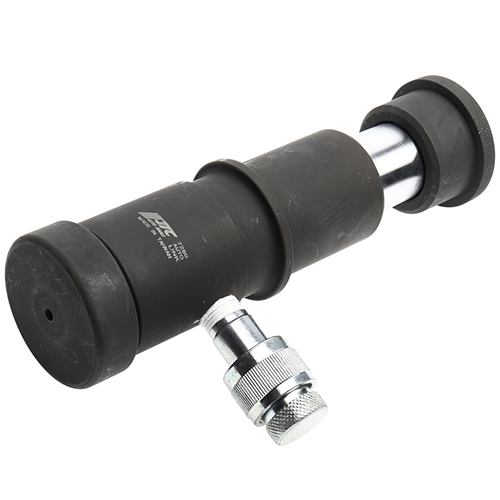

• Accessories: 4.5T hydraulic cylinder, JTC-CP351 coupler.
• Air pump compatibility: JTC-8P120 (optional).
• Application: Suitable for all types of heavy-duty trucks.

3. Practical Applications:

• Removing ball joints on the front and rear axles of heavy-duty trucks.
• Ideal for truck repair shops and maintenance centers.
• Compatible with all heavy-duty truck models, ensuring safe and efficient operations.
• Used in the maintenance and repair of truck steering systems.
• Assists in removing ball joints in hard-to-reach positions.

4. Usage Instructions:

• Attach the 4.5T hydraulic cylinder and connect it to the JTC-CP351 coupler.
• Adjust the handle and claw position to align with the ball joint to be removed.
• If using an air pump, connect it to the JTC-8P120 for improved performance.
• Position the jaw over the ball joint, then activate the hydraulic cylinder to remove the ball joint.
• After use, clean the tool and store it properly to ensure longevity.
