• Quick Blade Replacement: Quick-release blade system allows fast and easy blade changes without auxiliary tools, compatible with 12.7 mm and 19 mm blades.
• Low Vibration and Noise Reduction: Rear exhaust design with a 180° swivel handle reduces vibration and noise, ensuring maximum user comfort.
• High Performance: Equipped with a 0.9 HP motor and a speed of 2400 bpm, ideal for precise cutting tasks.
• Versatility: Capable of cutting mild steel up to 25 mm thick and steel pipes up to 80 mm in diameter.

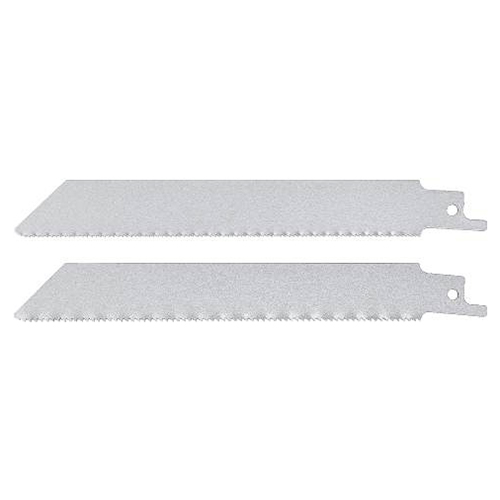

• Complete Accessories: Includes two saw blades (14T and 18T) to meet various cutting needs.

2. Specifications

• Motor Power: 0.9 HP.
• Stroke Speed: 2400 bpm (strokes per minute).
• Air Consumption: 4.1 CFM at 90 psi.
• Cutting Capacity:
  • Mild Steel: Thickness up to 25 mm.
  • Steel Pipes: Diameter up to 80 mm.
• Overall Length: 395 mm.
• Weight: 2.2 kg.
• Stroke Length: 30 mm.

3. Practical Applications

• Automotive Repair: Cutting metal parts in vehicle chassis and body repairs.
• Industrial Use: Cutting steel pipes or sheets in construction and installation projects.
• Manufacturing: Processing metal materials in production lines and mechanical workshops.

4. Instructions for Use

• Step 1: Connect the saw to the air compressor and ensure the air pressure is set to 90 psi.
• Step 2: Attach the appropriate blade (14T or 18T) based on the cutting requirement.
• Step 3: Adjust the swivel handle for optimal working posture.
• Step 4: Position the blade at the cutting point, activate the saw, and begin cutting.
• Step 5: After finishing, turn off the air supply, remove the blade, and clean the tool for storage.
