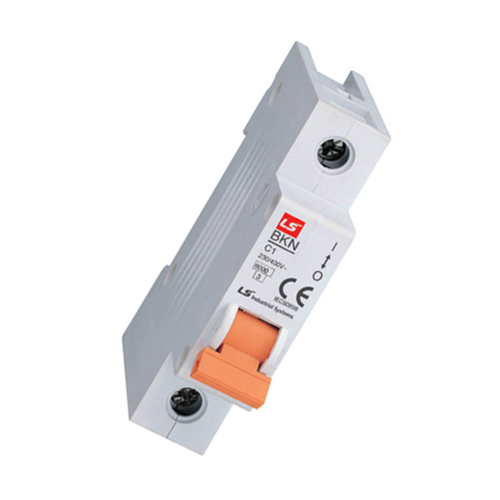

LS BKN 1P 16A 6kA MCB Circuit Breaker

1. Key Features

• Compact design, easy installation on standard DIN rail.

• Protects circuits from overload and short circuit with high accuracy.

• Short-circuit breaking capacity up to 6kA, ensuring safety.

• High mechanical and electrical lifespan, stable operation.

• Complies with IEC 60898 / IEC 60947-2 standards.

2. Technical Specifications

• Product code: BKN 1P 16A

• Product line: MCB BKN

• Poles: 1P

• Frame size: 63AF

• Rated current: 16A

• Breaking capacity: 6kA

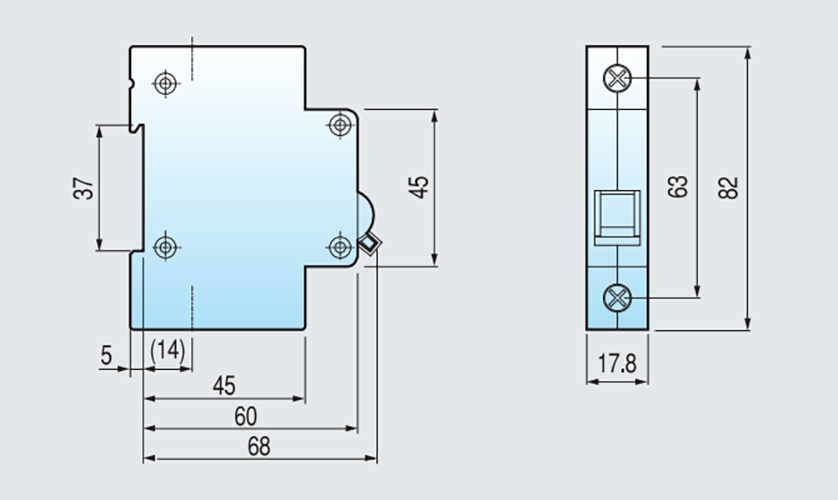

• Dimensions: 82 x 17.8 x 68 mm (as per drawing)

• Standard: IEC 60898 / IEC 60947-2

• Origin: LS

3. Applications

• Used in residential electrical networks to protect home devices.

• Applied in industrial power systems for branch circuit protection.

• Suitable for installation in distribution panels and switchboards.

• Provides reliable protection for machines and electrical equipment.

4. How to Use

• Install directly on a 35mm DIN rail in the panel.

• Connect wires according to the wiring diagram, tighten terminals securely.

• Switch to ON/OFF position to control power.

• In case of overload or short circuit, the breaker will trip automatically.

• Regular inspection and cleaning recommended for best performance.
