Vehicle Weighing Pads PCE-WWSC15T-S4
1. Key Features
Mobile SOLAS Weighbridge: Portable design, ideal for use in various work environments.
High load capacity: Supports weighing up to 50 tons with high accuracy (20 kg).

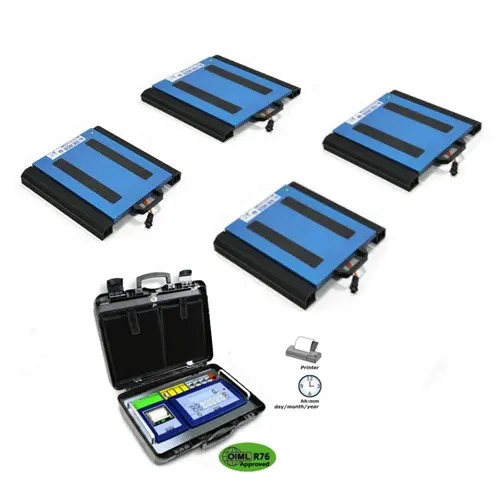

Four weighing platforms: Each platform handles a maximum load of 12.5 tons, ensuring stable and reliable measurements.
Integrated display: Backlit LCD with a built-in printer for printing weighing data, including time and date.
Versatile functions: Gross/net weight calculation, center of gravity computation, trailer aggregation, manual TARE input.
Flexible connectivity: Supports RS232 port and stores weighing data on a USB drive.
Battery-powered operation: Offers mobility with continuous working time of approximately 10 hours.
Robust design: Platforms made of durable aluminum, load sensors with IP68 protection rating.
2. Technical Specifications
SOLAS Weighing Platform
Load per platform: 12,000 kg / 12.5 tons / 26,455 lb.
System load capacity: 50,000 kg / 50 tons / 110,231 lb.
Accuracy: ±20 kg.

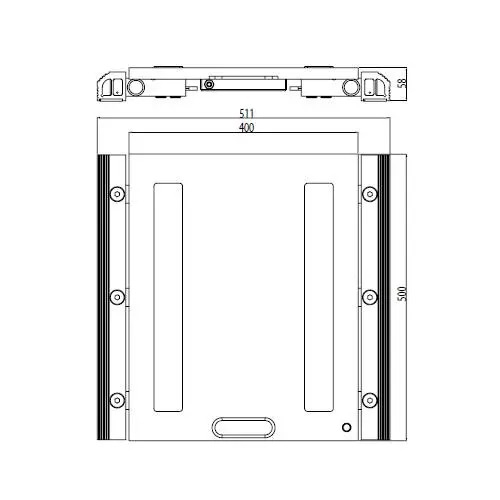

Platform dimensions: 500 x 400 x 58 mm.
Cable length: 10 m.
Platform weight: 18 kg.
Load sensor protection rating: IP68.
SOLAS Display
Type: Backlit LCD.
Digit height: 25 mm.
Power supply: Rechargeable Lithium-ion battery.
Operating time: Approximately 10 hours.
Charging time: Approximately 8 hours.
Connectivity: Supports up to 4 weighing platforms.
Integrated printer: Prints all weight values, time, and date.
Display dimensions: 325 x 460 x 170 mm.
Weight: 5 kg.
3. Practical Applications

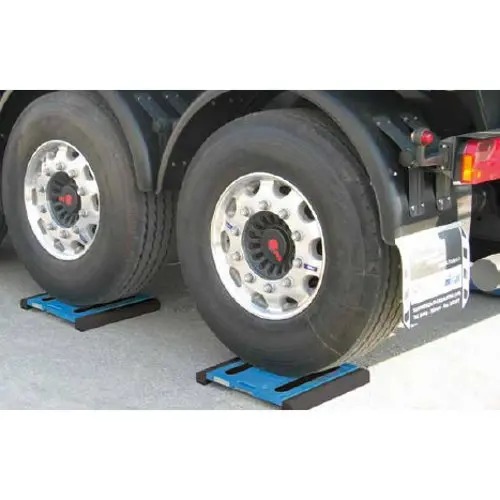

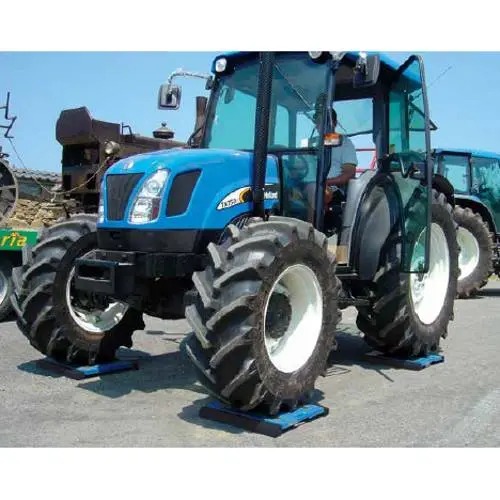

Truck weight measurement: Ideal for load checks in transportation and logistics industries.
Center of gravity calculation: Supports analysis and optimization of vehicle load distribution.
Cargo weight management: Assists in verifying gross and net weights in import/export operations.
Industrial use: Suitable for static weighing in production and product inspection.
Trailer support: Easily aggregates the weight of trailers and cargo.
4. How to Use
Preparation:
Ensure the display battery is fully charged.
Connect the platforms to the display using the provided cables.
Place the platforms at vehicle support points and check their alignment.
Start-Up:
Turn on the display using the power button.
Wait for the device to indicate readiness.
Weighing Process:
Place the vehicle or object to be weighed on the platforms.
Observe the weight values displayed on the screen.
Use the TARE input function if necessary.
Printing and Data Storage:
Use the integrated printer to print results.
Save data onto a USB drive if required.
Shutdown:
Turn off the device after use.
Store the platforms and display in the provided carrying case to ensure durability.
