WheelFree 4 Ton Double Scissor lift Heshbon HL-40D
1. Key Features
🔹CE-certified for verified safety and quality.
🔹Long platform with dual extensions for long-wheelbase vehicles.
🔹Automatic hydraulic oil supply to slave cylinder.
🔹Photo sensor prevents accidents from height differences.
🔹High-performance durable master & slave hydraulic cylinders.
🔹Easy synchronization with special hydraulic valves.
🔹Air cylinder-operated locking system.
🔹Rubber pads protect the vehicle’s chassis.
🔹Extendable sliding platforms for flexibility.
🔹Double scissor link for stronger platform support.
🔹Optional low-voltage remote cable control.
2. Technical Specification
🔹Model No.: HL-40D
🔹Brand: Heshbon
🔹Made in Korea
🔹Lifting Capacity: 4,000 kg
🔹Max Lifting Height: 1,900 mm

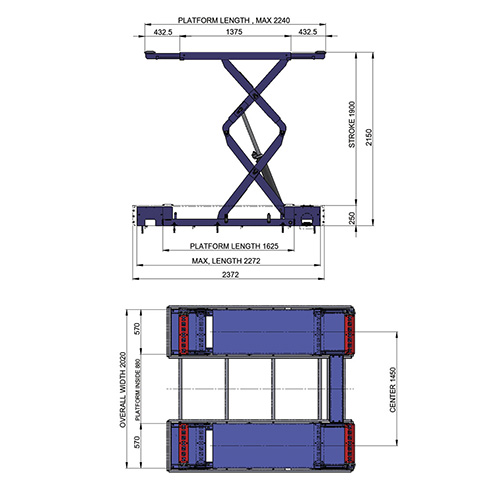

🔹Dimension (L x H x W): 2,272 x 250 x 2,020 mm
🔹Power Supply & Motor:
1ph: 3HP, 4P, 220/380V, 50/60Hz
3ph: 4HP, 4P, 220/380V, 50/60Hz
🔹Net Weight: 1,010 kg
3. Applications
🔹Ideal for professional auto repair garages.
🔹Used for tire change, undercarriage and engine maintenance.
🔹Suitable for sedans, SUVs, and long-axle vehicles.
🔹Common in inspection stations and maintenance centers.
🔹Also used in factory end-of-line quality checks.
4. How to Use
Step 1: Park the vehicle on the platform and align correctly.
Step 2: Adjust rubber pads to contact the chassis.
Step 3: Activate lifting system via switch or remote.
Step 4: Locking system engages at safe height.
Step 5: Perform maintenance or repair.
Step 6: Lower vehicle and ensure safety before driving off.
