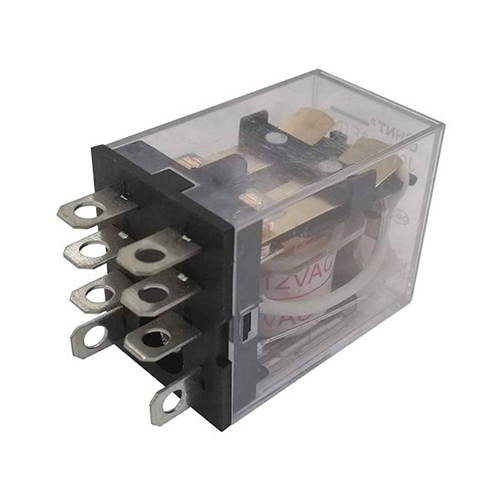

Chint NP2-ED33 3-Position Rotary Switch 2NO

1. Key Features

• Compact design with convenient plug-in base.

• Silver alloy contacts for durability and high conductivity.

• Rated load: 10A at 220VAC or 28VDC.

• Wide operating temperature range (-25°C to +55°C).

• Protective housing, CE and UL certified.

2. Technical Specifications

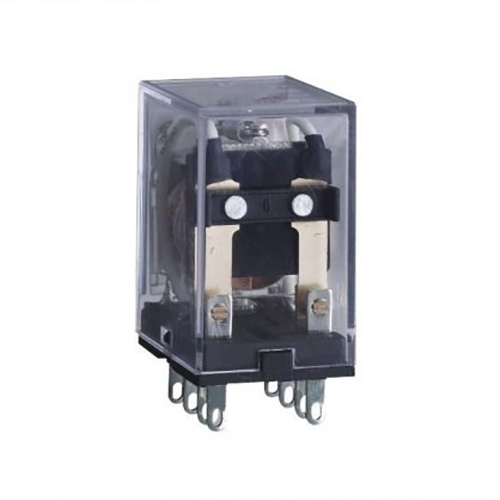

• Model: JQX-13F/2Z

• Type: Intermediate relay

• Pins: 8 pins, flat type (plug-in terminals)

• Output: DPDT

• Coil Voltage: 220VAC

• Rated Current: 10A

• Contact Structure: Single-break

• Contact Material: Silver alloy

• Operating Temperature: -25°C ~ +55°C

• Humidity ≤ 90%

• Dimensions: 21.5 × 27.5 × 35.5 mm

• Standards: CE, UL

3. Applications

• Industrial control circuits.

• Signal isolation and amplification.

• Used in control cabinets, automation systems, machinery.

• Control circuits for motors, pumps, lights, and electrical devices.

4. How to Use

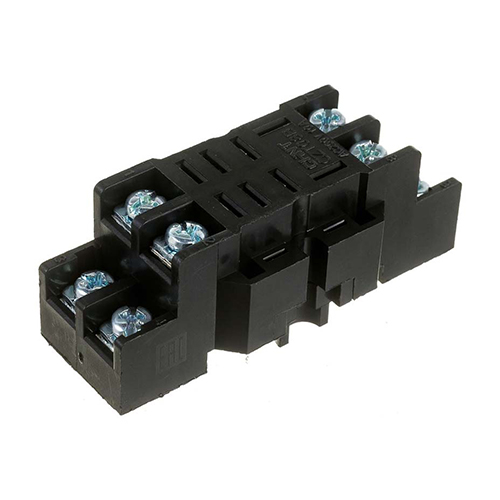

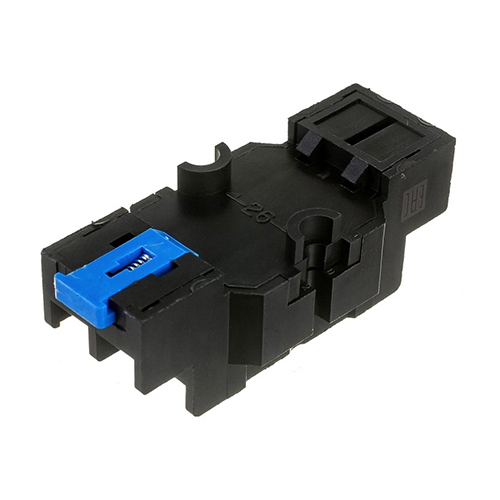

• Install into a compatible socket base (CZTO series).

• Connect relay pins according to control circuit diagram.

• Ensure coil voltage matches rated value (220VAC).

• Regularly check contacts to maintain relay lifespan.
