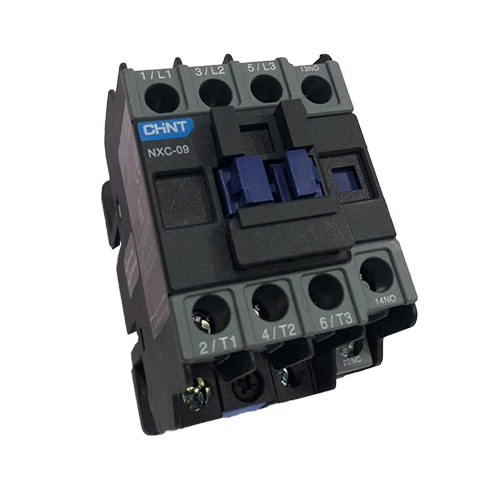

Chint NXC-09 3-Phase Magnetic Contactor 9A 220VAC
1. Key Features
-
New generation NXC contactor from CHINT, replacing NC1 series.
-
Compact size, easy installation in control panels.
-
Energy-saving design with lower operating temperature.
-
Stable performance with long electrical and mechanical life.
-
Suitable for motor control and lighting circuits.
2. Specifications
-
Model: NXC-09
-
Brand: CHINT – Origin: China
-
Type: 3-phase Contactor
-
Rated current: 9A
-
Coil voltage: 220VAC, 50/60Hz
-
Rated insulation voltage (Ui): 690V
-
Rated impulse withstand voltage (Uimp): 6kV
-
Motor power AC-3 (380V): 2.2kW
-
Mechanical life: 10 million operations
-
Electrical life: 1 million operations (AC-3)
-
Mounting: DIN rail or screw
-
Standard: IEC/EN 60947-4-1
3. Applications
-
Motor control in industrial electrical panels.
-
Used for pumps, fans, compressors.
-
Suitable for lighting, heating, HVAC systems.
-
Widely applied in factories, workshops, and M&E projects.
4. How to Use
-
Mount contactor on DIN rail or control panel.
-
Connect wiring according to CHINT manual.
-
Apply 220VAC to the coil.
-
When energized, the contactor closes to power the motor or load.
