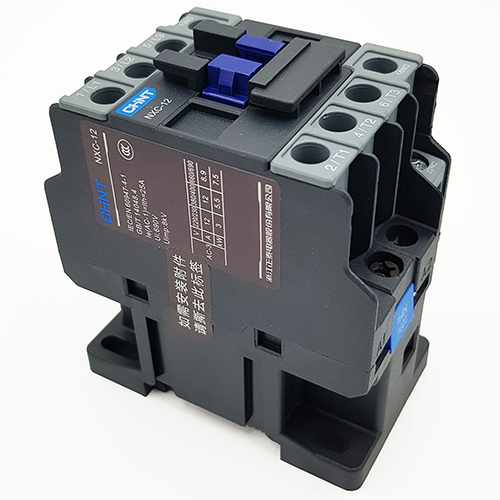

Chint NXC-12 3-Phase Magnetic Contactor 12A 220VAC

1. Key Features

• Chint NXC-12 contactor is a 3-phase magnetic starter, compact and durable design.

• Reliable operation in industrial environments with long service life.

• Control coil voltage: 220VAC, rated current 12A.

• Suitable for motor control, lighting, and power distribution.

• Complies with IEC/EN60947 international standards.

2. Technical Specifications

• Model: NXC-12

• Brand: CHINT

• Origin: China

• Type: 3-phase contactor

• Rated current (Ie): 12A

• Coil voltage: 220VAC

• Poles: 3P

• Standard: IEC/EN60947

3. Practical Applications

• Used for controlling 3-phase AC motors.

• Suitable for lighting, HVAC, and water pump systems.

• Installed in industrial control panels and distribution boards.

• Can be combined with thermal relays for overload protection.

4. How to Use

• Install in the electrical panel according to the control circuit diagram.

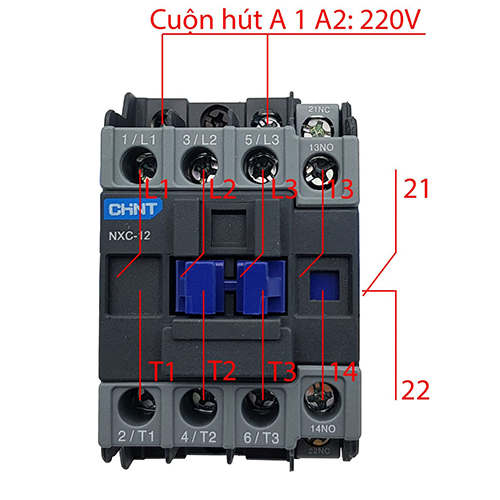

• Connect the 220VAC coil to the control power supply.

• Wire the main contacts (3P) to the motor or load.

• Check connections before energizing.

• Use with thermal overload relay for motor protection.
