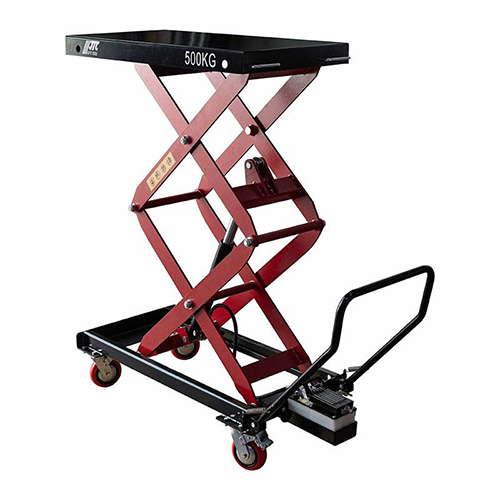

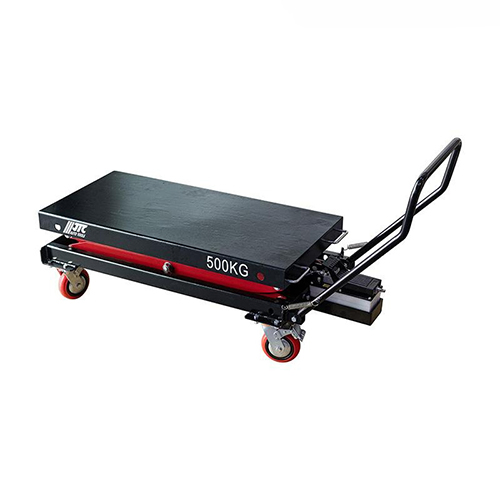

JTC-7362 500KG Hydraulic Table Lift

1. Key Features

The JTC-7362 Hydraulic Table Lift (500KG) is designed for engine, transmission, subframe, and EV battery removal and installation.
Operated by pneumatic hydraulic pump for fast and effortless lifting (same specification as JTC-8P120).
Features a 10 mm thick platform support arm, providing exceptional strength and durability.
Equipped with 4 swivel casters (6” TPE wheels with brakes) for smooth movement and secure positioning.
Comes with a detachable push handle for easy maneuvering, and four grip handles (two front, two rear) for precise positioning.

2. Specifications

• Model: JTC-7362

• Product Name: 500KG Hydraulic Table Lift

• Load Capacity: 500 kg

• Weight: 165 kg

• Operation: Pneumatic + hydraulic pump

• Support Arm Thickness: 10 mm

• Wheels: 4 x 6” TPE swivel casters with brakes

• Handle: Detachable push handle

• Grip Handles: 4 (two front, two rear)

3. Applications

Ideal for:

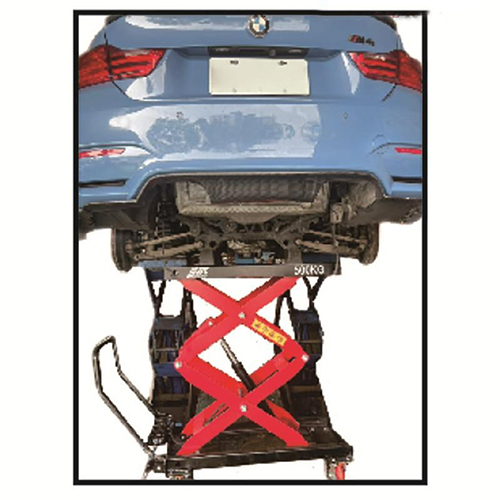

• Removing and installing engines, transmissions, front/rear subframes, oil drums, EV batteries, and differentials.

• Automotive repair shops, heavy-vehicle maintenance, and industrial assembly.
  Ensures safety, stability, and efficiency in all lifting operations.

4. How to Use

1. Connect to pneumatic power or operate the manual pedal pump.

2. Place the load centered on the platform.

3. Lock the caster brakes before lifting.

4. Release hydraulic pressure slowly after work to lower the platform safely.
