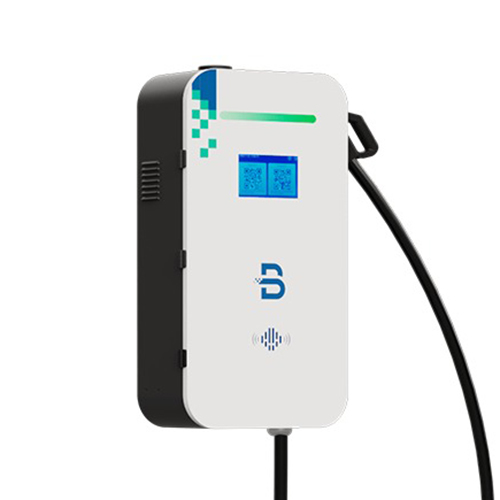

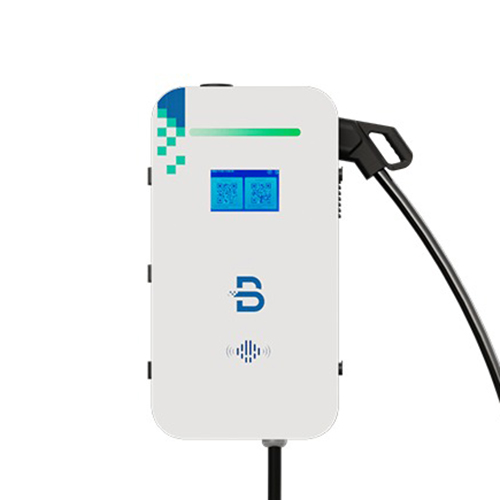

Wall-mounted DC EV Charger 30KW
1. Key Features
- Compact wall-mounted design, ideal for installation in parking lots, factories, office buildings, and shopping centers.
- 30kW fast charging power, saving time – approximately 240 km of range in just 1 hour.
- 7-inch LCD touch screen, clear display, easy to operate.
- Smart connectivity via RFID, mobile app, and remote management software (OCPP 1.6J).
- Comprehensive protection system: overvoltage, overcurrent, leakage, overheating, surge protection – ensuring maximum safety.
- High efficiency >95%, energy-saving and stable operation.
2. Technical Specifications
Model : BBDC30-S
Brand: Beny
Shell Material : Galvanized Sheet
Dimension : 450×250×850 (L×W×H mm)
Packing Dimension : 1030×570×420 (L×W×H mm)
Weight := <80kg

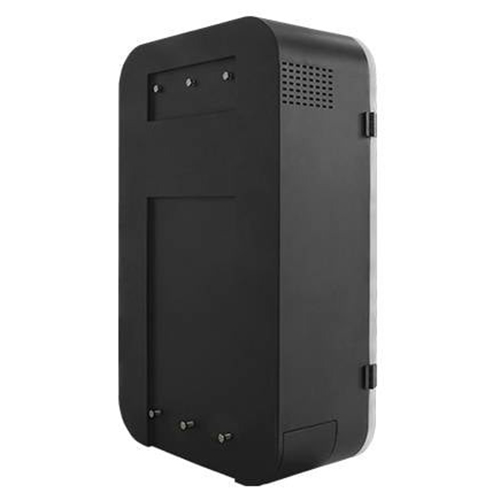

Installation Method : Wall-mounted
Cable Routing : Bottom Inlet Wiring, Bottom Outlet Wiring
Total length of gun cable : 5m
Charging Outlets : Single (CCS1/CCS2/GBT/NACS)
Connectivity Authorization : RFID, App
Screen : 7 Inch LCD Screen / LED Light
AC Input Voltage : AC380V~415V, 3P+N+PE
Rated Input Current : 51A
Input Frequency : 50Hz/60Hz
Consumption : <15W
Rated Power : 30kW
Output Voltage Range : CCS1/CCS2/GBT/NACS: 150Vdc – 1000Vdc
Output Current : 0~100A
Efficiency : >95%
Power Factor : >0.99 (load: 100%)
Functionate Design
user Interface : Emergency Stop Button, LED Indicator, Card Swiping, Touch Screen
Charging Standards : EN IEC 61851-1:2019, IEC 61851-1:2017, EN 61851-23:2014, IEC 61851-23:2014, EN 61851-24:2014, IEC 61851-24:2014, EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021
Communication
OCPP : OCPP 1.6J
Network Interface : Ethernet / 4G / WiFi
RF Parameters
LTE-FDD Operating Frequency : B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD Operating Frequency : B38/B39/B40/B41
UMTS Operating Frequency : B1/B2/B4/B5/B6/B8/B19
MIFARE Operating Frequency : 13.56MHz±7kHz
2.4G Wi-Fi Operating Frequency : 2412MHz~2484MHz
2.4G Wi-Fi Max Transmit Power : 20.5 dBm
WCDMA Max Transmit Power : 24 dBm ±1.3 dB
LTE-FDD Max Transmit Power : 23 dBm ±2 dB
LTE-TDD Max Transmit Power : 23 dBm ±2 dB
MIFARE Max Transmit Power : 14.05dBuA/m
Environment Condition
Application Place : Indoor / Outdoor
Working Altitude : < 2000 m
Storage Temperature : -30°C ~ +85°C
Working Temperature : -30°C ~ +50°C
Working Humidity : 5% ~ 95%
Protection Level : IP55 (IK10 for screen, IK08)
Natural Cooling : Forced-air Cooling
Security Design : Over/Under Voltage Protection, Overload Protection, Current Leakage Protection, Grounding Protection, Over Temp Protection, Lightning Surge Protection
3. Practical Applications
- Public charging stations in EV parking areas, malls, industrial zones.
- Electric transportation companies needing fast charging for high-power EVs.
- Urban charging infrastructure projects in residential areas, highway rest stops.
- Companies and offices implementing EV charging for employees.
- Commercial electric vehicles such as electric taxis, delivery vans, mini buses, etc.
4. How to Use
- Connect to power supply: Ensure the charger is properly connected to a stable AC source.
- Plug the charging gun into the vehicle: Select the appropriate connector (CCS1/CCS2/GBT/NACS).
- Authenticate the user: Use RFID card or mobile app to start charging.
- Monitor the process on screen: Real-time charging data displayed on the LCD screen.
- End the charging session: Charging stops automatically when full or can be manually stopped via the app.
- Unplug the charging cable and close the vehicle charging port to finish safely.
