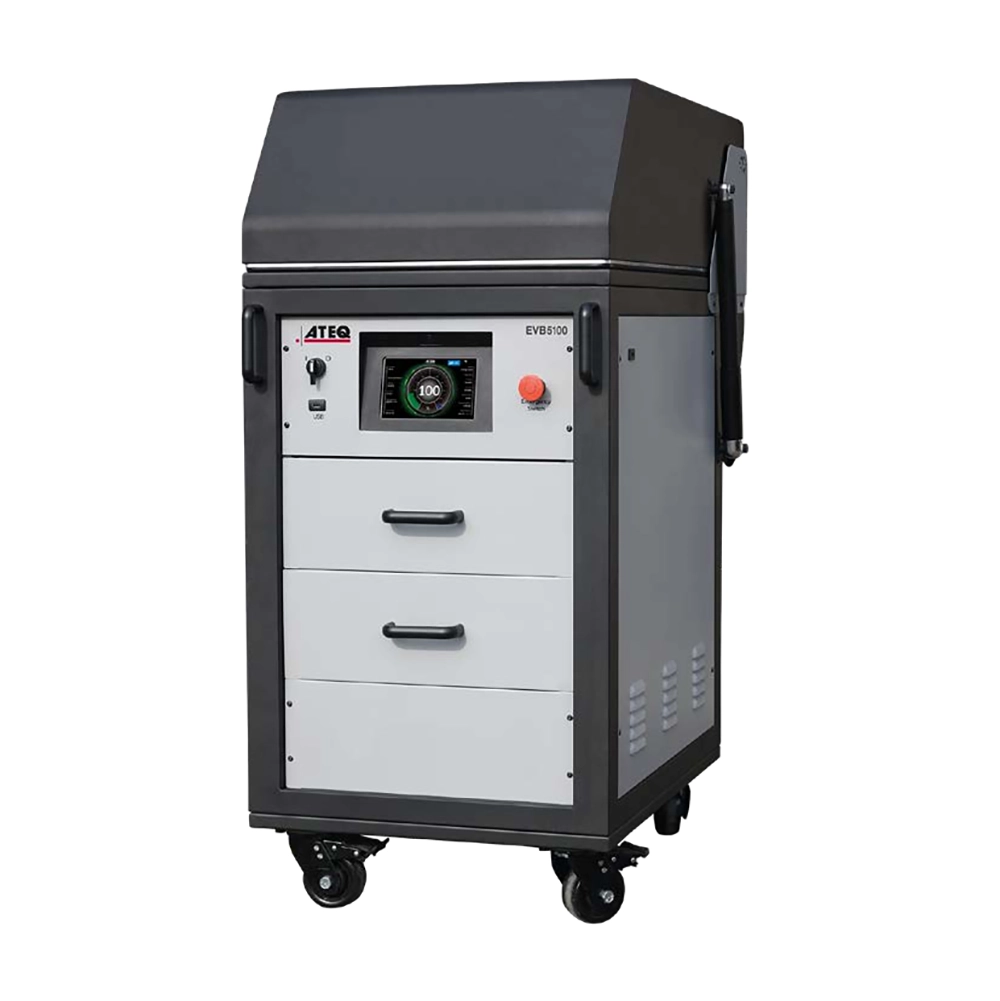

Ateq EVB 5100 EV/hev -Battery Module Balancer
Ideal For Rework Stations On Ev-Vehicle Production Lines
Equalizes Voltage Differences Between Modules
Adaptable To All Ev/Hev Batteries On The Market
1. Key Features
Ideal for rework stations on EV vehicle production lines, the EVB 5100 Battery Module Balancing Machine uses the most efficient technologies to equalize voltage
differences between modules.
Its wide operating range and customization capabilities, makes the EVB 5100 compatible with all EV/HEV batteries on the market.
EASY OPERATION

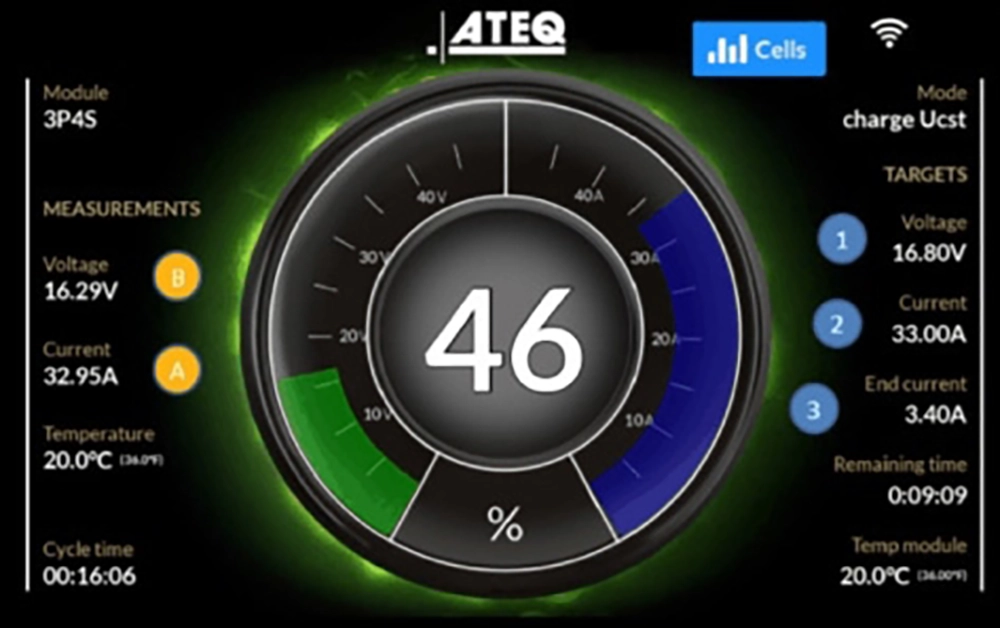

Color touch display with digital keypad and user-friendly interface.
Integrates a module database for easy selection.

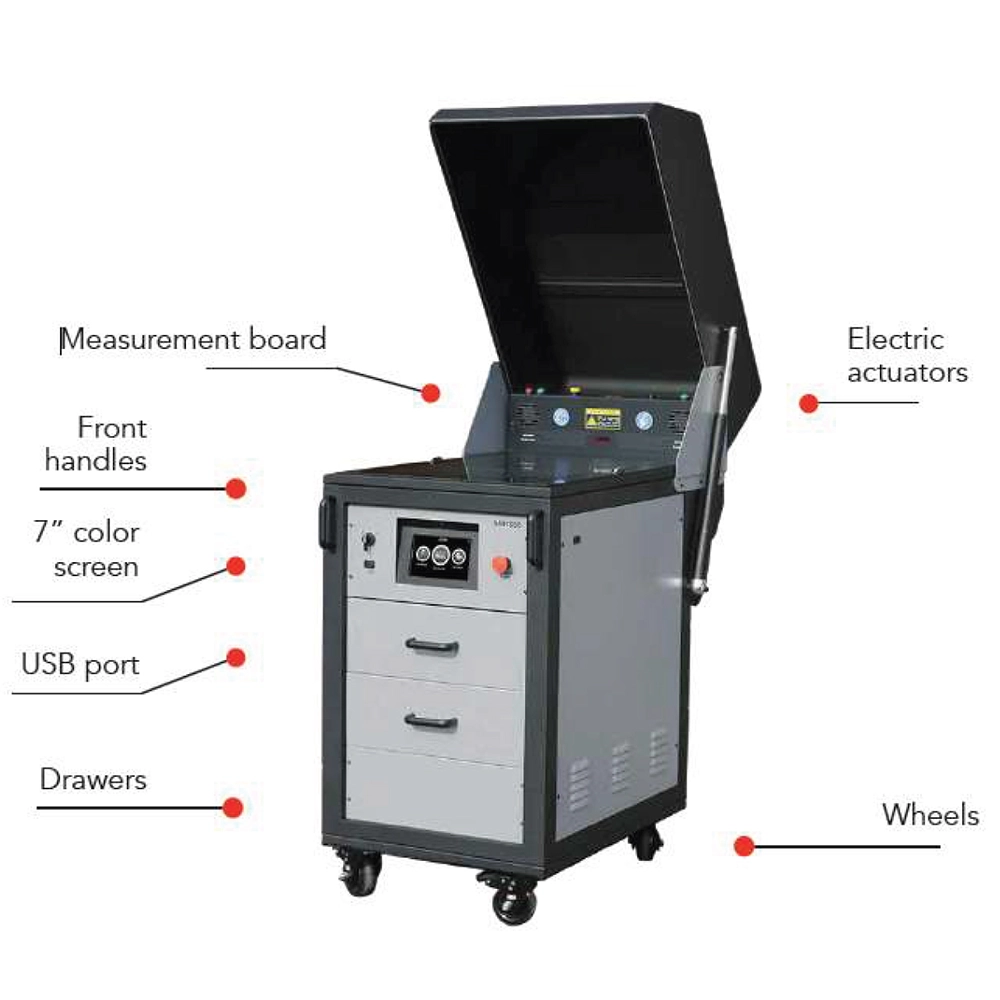

BUILT-IN SAFETY FEATURES
Hood with auto-lock and anti-pinch system, air cooling fans, emergency
stop button, LED status indicators etc.
2. FEATURES

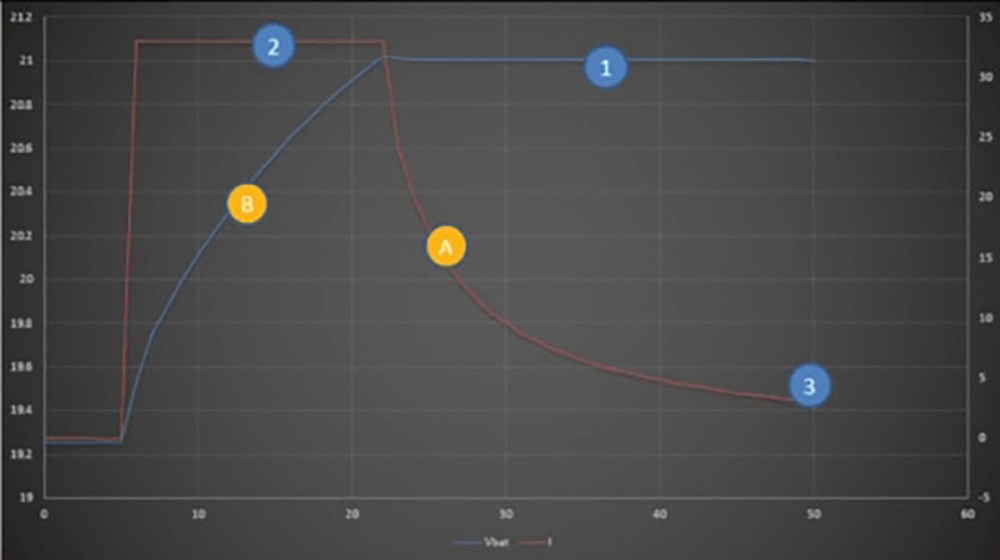

Battery balancing (charging, discharging) and temperature monitoring for EV/HEV modules
Wide balancing range: In charge 60V-50A/150V-20A, in discharge max 3000W
Easily configurable target values, voltage and current thresholds
Cloud-based platform for data collection, real-time monitoring and reporting
Monitoring connectors perform voltage/temperature surveillance of each internal cell
Integrates a module database for easy reference selection
Fully secure operation and shut down in case of anomaly, thanks to automated security checks
Futureproof: exchangeable power charger modules and connectors
Worldwide support through ATEQ subsidiaries and local agents in 32 countries
3. Technical Specifications
STANDARD EQUIPMENT
EVB 5100 station
5m power cord
Charging cable (male/female compliant)
Cell monitoring cable (customised)
Dimensions: 310 x 1051 x 695 mm
Weight: 145 kg
Display: 7” touch screen
Power supply: 200-240 V, 56/60 Hz
Consumption: 2kW Max.
Communication: Wi-Fi, Bluetooth,
ACCURACY
Current: +/- 0,1A from 0 to 50A
Voltage: 1 mV from 0 to 40V
10 mV from 40 to 80V
100 mV from 80 to 150V
CHARGE MODE
Power supply 1: 60V-50A
Power supply 2: 150V-20A
DISCHARGE MODE
Max power dissipation: 3000W
Max voltage: 150 Vdc
Max current: 50 A
VOLTAGE MEASURE
Accuracy power supply 1: 5mV
Accuracy power supply 2: 10mV
STORAGE AND
Operating temperature: 0°C to +40°C
OPERATION CONDITION
Storage temperature: -20°C to 55°C
Relative humidity: 0 to 90% Non-condensing
OPTIONS
EVB 5100 without hood
Lead-acid battery charger
