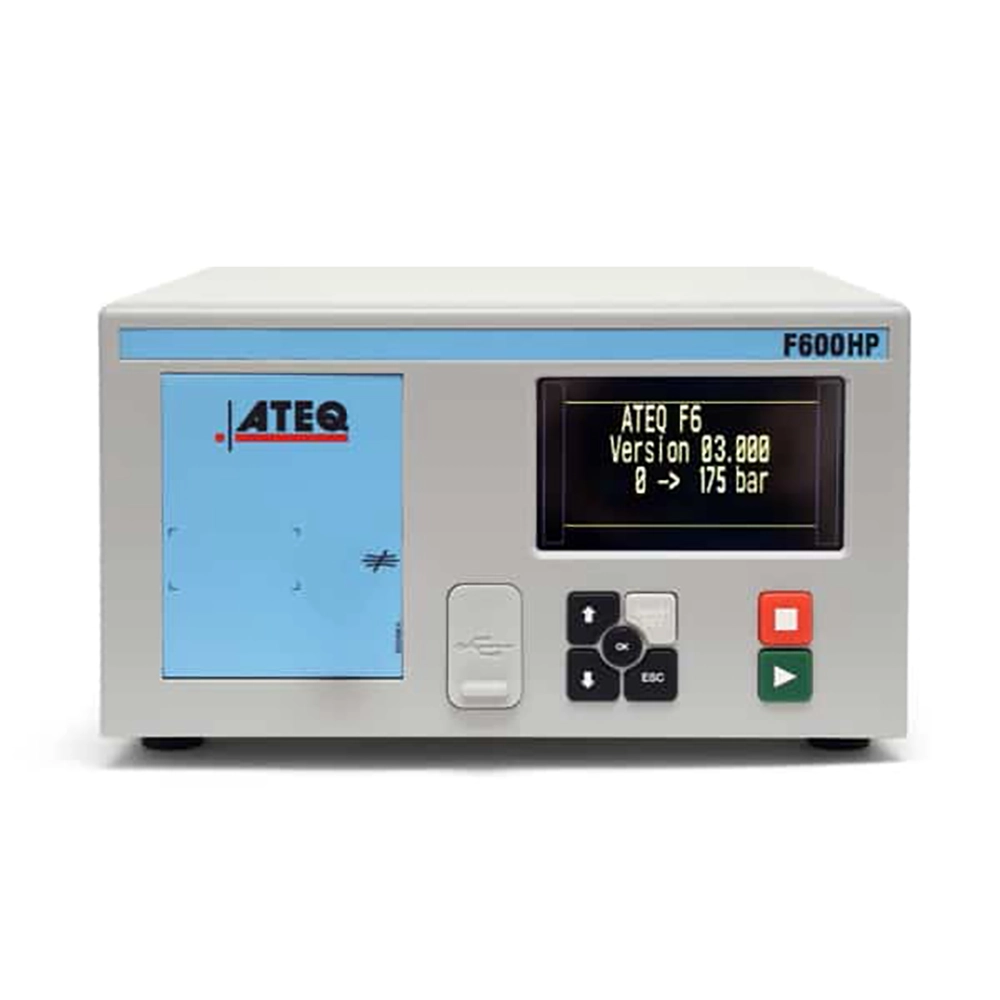

Ateq F600 HP High Pressure Compact Leak Detector For Production Testing
1. Applications
Without any doubt the smallest high pressure leak detector on the market. The F600 HP is
equiped with the technical innovations of the 6 series and allows high pressure leak testing at a very
competitive price.
Catheters, refrigeration parts, oil radiators, HP tubes and pipes,
valves, hydraulic brakes...
EMOBILITY
Battery Packs
Pouches & Cells
Modules
Housing…
AUTOMOTIVE
Air Conditioning
Radiators
Exhaust
Transmission…
PACKAGINGS
Aerosol Caps
Plastic Bags
Sprays
Plastic Bottles...
ELECTRONICS
Hard Disk
Watches
TV Screen
Camera Lenses…
MEDICAL
Blister Packs
Fluid Bags
Filters
Condoms…
2. FEATURES
GENERAL
Pressure decay leak testing from 5 to 1000 kPa
Range of measurement from 20 to 200 bar
128 programs
Setting on line (via USB)
Electronic regulation 4 MPa / 5 MPa
Mechanical regulation 5 MPa/ 10.0 MPa/ 17 MPa / 20.6 MPa
TEST MODES
Flow units (sccm, mm³/s, cm³/s, cm³/min, cm³/h…)
Desensitized Test and others, depending on your applications
ENVIRONMENT
ROHS Standard
FLEXIBLE COMMUNICATION FORMAT
RS232: Printer, Modbus RTU
Slave USB: USB key ti transfer data (parameters, results…)
Master USB: USB key to transfer (parameters, results, …)
6 Inputs / 6 Outputs 24 V Programmable for External Automation
PRESSURE DROP MEASUREMENT
Pressure Range: 5 MPa Max (50 bar)
Mesurement range: 0.01 to 5.00 kPa
Accuracy: +/- 1.0% Rdg+ 1% FS
Pressure Range: 10 MPa Max (100 bar)
Mesurement range: 0.01 to 10.00 kPa
Accuracy: +/- 1.0% Rdg+ 1% FS
Pressure Range: 2 to 20 MPa
20 to 200 bar
Mesurement range: 0.01 to 100.00 kPa
0.1 to 500.0 kPa
0.1 to 1000.0 kPa
Accuracy: +/- 1.0% Rdg+ 1% FS
Measurement range: From 10 % to 100 % of the full scale.
3. Technical Specifications
PHYSICAL
Weight: 7 Kg
Dimensions: (WxHxD) 250x150x360 mm
ELECTRICAL SUPPLY
24VDC/2A or 100-240VAC/50W
TEMPERATURE
Operating: + 5°C at + 45°C
Storage: 0°C at + 60°C
INTERFACE
Graphic color screen with simple and intuitive menu-driven operator controls
SMART KEY: programmable key with user’s functions
AIR SUPPLY
Command 4/6 bar
Pressure 1 or 2 bar > test pressure
Clean and dry air
Air quality standard to be applied (ISO 8573-1)
4. TECHNOLOGY
As a stripped down version of the previous technology, standard pressure decay compares the pressure on the part with the atmospheric pressure.
This technology is used when the application does not require a very high accuracy or a very fast cycle time. The method used is based on the measurement of a small variation or drop in pressure with a piezo sensor

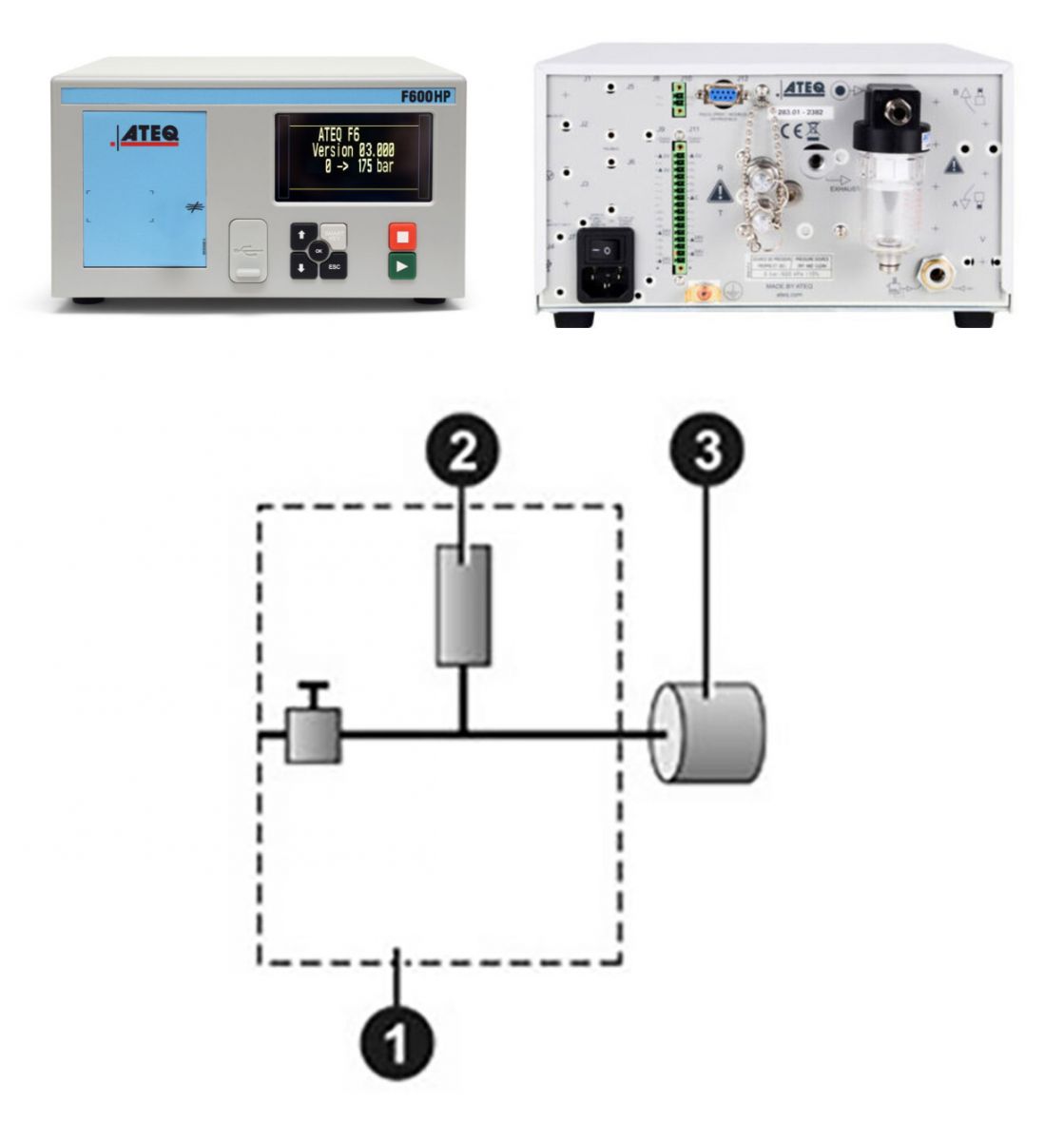

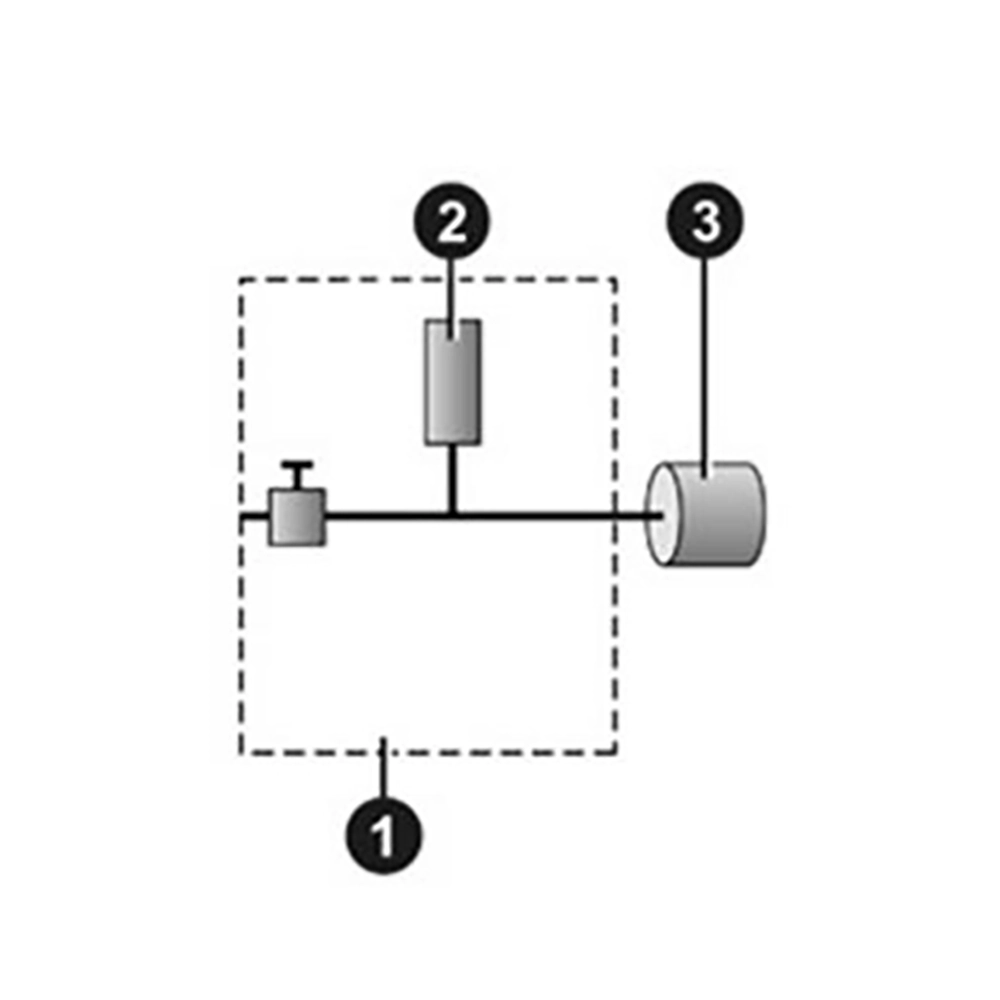

DECENSITIZED TEST
The test pressure is applied to the input of the test part 3. The measurement is performed by the pressure sensor 2.
Device
Pressure sensor
Part under test
