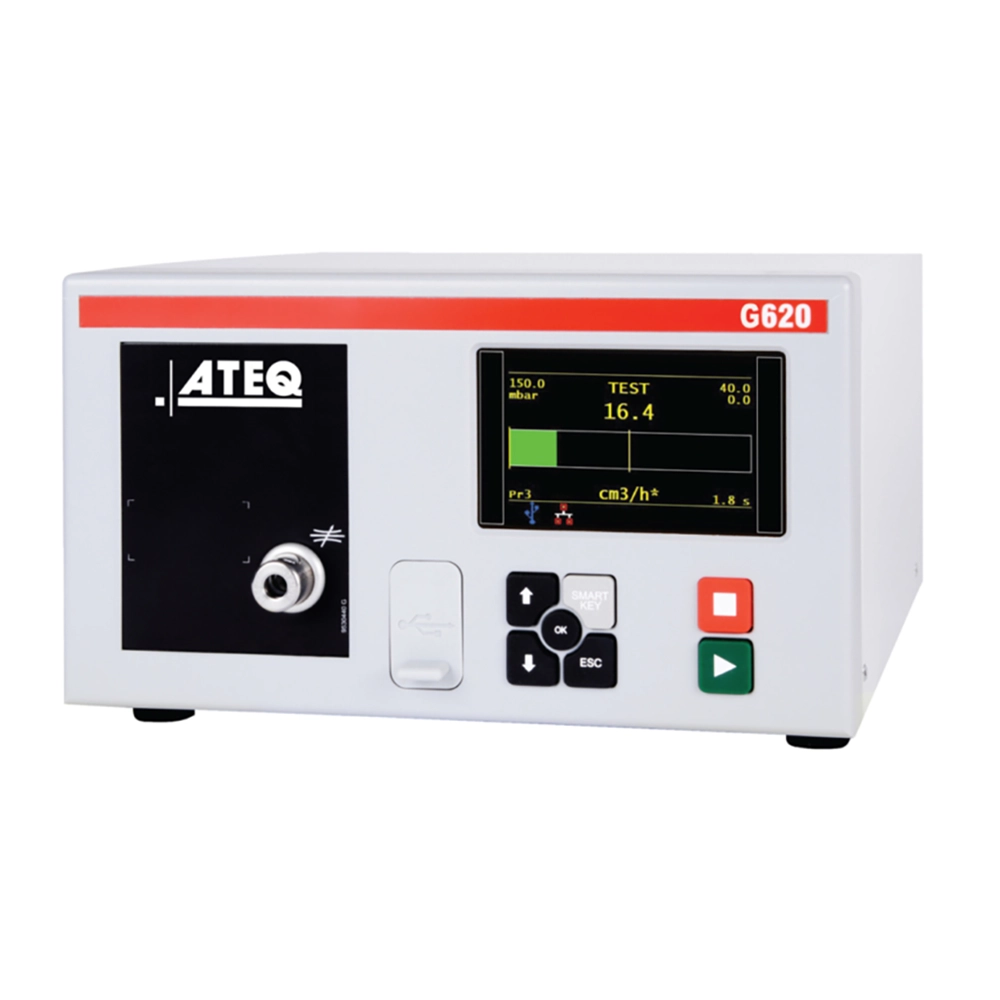

Ateq G620 Compact Leak Tester With Continuous Flow
Without a doubt the smallest high-performance continuous flow tester on the market. Specially
adapted for automatic or semi-automatic test machines, the G620 has a full range of specifications at
a very competitive price. The use of continuous testing may allow the localisation and repair of leaks.
Applications
Automotive, small volume parts, injection rails, filter caps,
gaz industry, cookers, gas float, heat exchangers for boilers, taps…
Compact Leak Tester With Continuous Flow
Measurement ranges
FLOW MEASUREMENT
Range: 100 cc/h
Accuracy(1): +- (0.5% Rdg +1% FS)
Range: 1000 cc/h
Accuracy(1): +- (1% Rdg +0.25% FS)
Main Features
Continuous flow leak detection
128 programs
2 flow measurement ranges full sacle : 100 or 1000 cm3.atm/h
Measurement flow returned to standard conditions
Calculation of the test part volume
Setting on line (via USB)
Automatic start
2 languages (English + other one)
Manual calibration on front panel with calibrated leak
Data storage on internal memory or USB key
Flexible Communication format
RS232: Printer, modbus RTU
Slave USB: PC supervision (WinAteq 300, sesame)
Master USB: USB key to transfert (parameters, results, ...)
Option Fieldbus: Profibus, devicenet, Ethernet/IP
Technical Specifications
Physical
Weight: 7 kg / 14 lbs
Dimensions: (WxHxD) 250x150x360 mm
Interface
Navigation keys
4-line vacuum fluorescent display
Results indicator lights
Electrical supply
Voltage: 24 V DC / 1.6 A or 100 - 240 V AC / 50 W
Air supply
Clean and dry air required
air quality standard to be applied (ISO 8573-1
Temperature
Operating: +5°C to +45°C
Storage: 0°C to +60°C
Option
9 inputs / 5 outputs
1 quick connectors for calibration checking
2 pneumatic outputs for control of sealing connectors
6 x 24 V programmable outputs for external connection
2 voltage Analogue Output
Special valve (Shut off and or Bypass)
Accessories
Simple remote control TLC60 connection I/O
Advanced remote control TLC600 connection master USB
ATEQ software (WINATEQ)
Master leak
Needle valve
Filtration kit
Pneumatic coupler
Please refer to ATEQ accessories list
