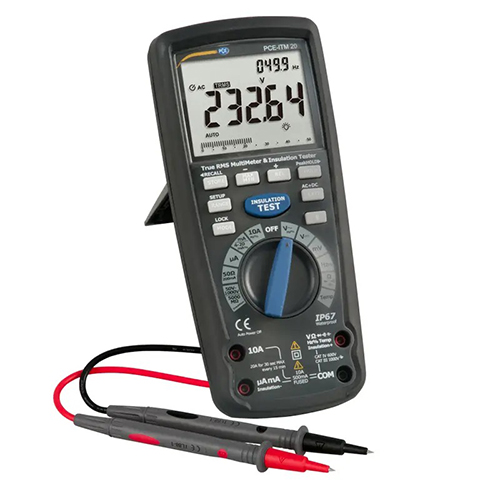

Digital Multimeter PCE-ITM 20
1. Key Features
- Versatility: Combines a multimeter and insulation tester in a single device.
- High insulation test voltage: Up to 1000 V, measures insulation resistance up to 5000 MΩ (5 GΩ).
- Comprehensive measurement capabilities:
+ Voltage (DC/AC) up to 1000 V.
+ Current (DC) from 500 µA to 10 A.
+ Resistance, capacitance, and frequency measurements.
+ Temperature measurement with a Type K thermocouple.
- Smart functionalities:
+ Auto-range selection.
+ Built-in memory storing up to 9999 measurement values.
+ Hold Function and direct measurement of PI and DAR.
- Safe and convenient:

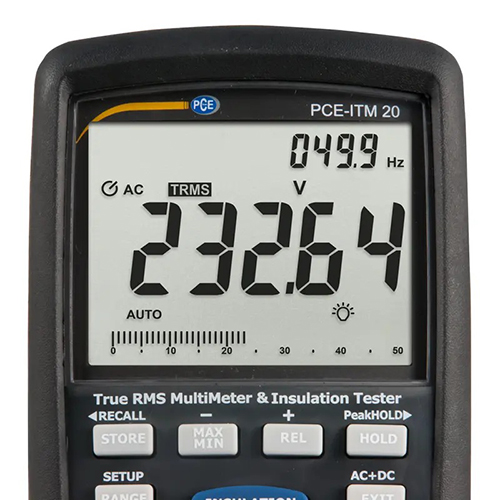

+ Large backlit LCD, easy to read in low-light conditions.
+ Complies with IEC 1010 standards, CAT IV 600 V, IP67 dustproof and waterproof rating.
+ Wireless USB interface for PC connectivity.
2. Specifications
- DC Voltage: Range from 50 mV to 1000 V, accuracy ± (0.06% to 0.1%).
- AC Voltage: Range from 50 mV to 1000 V, accuracy ± (1% + 30 digits).
- DC Current: Range from 500 µA to 10 A, accuracy ± (0.5% + 3 digits).
- Resistance: Range from 50 Ω to 50 MΩ, accuracy ± (0.1% to 1.5%).
- Capacitance: Range from 50 nF to 10 mF, accuracy ± (1.5% to 3%).
- Frequency: Range from 50 Hz to 100 MHz, accuracy ± (0.02% + 3 digits).
- Insulation Test Voltage: 50 V, 125 V, 250 V, 500 V, 1000 V, accuracy ± (2% to 4%).
- Memory: Stores 9999 data points.
- Power Supply: 6 AA 1.5V batteries.
- Casing: Dust and water-resistant IP67.
- Dimensions: 220 x 95 x 50 mm. Weight: 720 g.
3. Practical Applications
- Insulation Testing: Evaluate the insulation integrity of equipment and cables in industrial and electrical maintenance.
- Measurement and Maintenance:
+ Test electrical parameters in residential and industrial systems.
+ Measure temperatures in mechanical and HVAC applications.
- Educational and Research Applications:
+ Use in laboratories for electronic data analysis.
+ A valuable tool for technical training courses.
- Frequency and Capacitance Testing: Essential for work in electronics and telecommunications fields.
4. Usage Instructions
- Prepare the device:
+ Install 6 AA 1.5V batteries and check the included accessories such as test leads, alligator clips, and thermocouples.
+ Ensure the multimeter is in a dry and moisture-free environment.
- Voltage/Current Measurement:
+ Connect the test probes to the device as indicated (COM and V/Ω).
+ Select the measurement mode (DC/AC) and appropriate range or use the Autorange function.
- Insulation Testing:
+ Connect the probe to the target object.
+ Select Insulation Test mode and set the test voltage (50 V to 1000 V).
+ Read the results directly on the screen or save the values.
- Temperature Measurement:
+ Connect the Type K thermocouple to the temperature input port.
+ Select Temperature mode and wait for the value to display.
- Data Transfer:
+ Use the wireless USB interface to connect to a computer for data transfer and analysis.
- Cleaning and Storage:
+ Clean the device with a dry cloth and store it in a safe, dust-free place.
