Infrared Thermometer PCE-ILD 10

1. Key Features

• Wide measuring range: The PCE-ILD 10 infrared thermometer has a measuring range of -50 … 500 °C (-58 … 932 °F), allowing it to measure the surface temperature of various materials.

• Fast measuring rate: The device has a measuring rate of up to 2 Hz, enabling quick and accurate data collection.

• 12:1 Spot Ratio: This ratio allows the infrared thermometer to measure temperature accurately over large areas without interference from the surrounding environment.

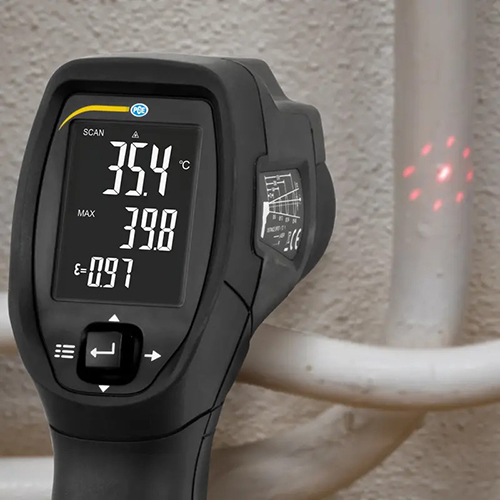

• Multipoint laser: The device is equipped with a multipoint laser to help align the measuring spot precisely.

• Acoustic and visual alarm: The thermometer can store temperature limit values, and when the temperature exceeds or falls below these limits, it will automatically trigger an acoustic and visual alarm.

• ISO calibration certificate option: The device can be optionally supplied with an ISO calibration certificate, ensuring accuracy for quality control applications.

2. Technical Specifications

• Measuring range: -50 … 500 °C / -58 … 932 °F

• Resolution: 0.1 °C / 0.1 °F

• Accuracy:

  • ±3 °C / ±5.4 °F at -50 … 20 °C / -58 … 68 °F

  • ±2 % or ±2°C / ±3.6 °F at 20 … 500 °C / 68 … 932 °F

• Repeatability: ±1 °C / 1.8 °F

• Spot ratio: 12:1

• Measuring rate: 2 Hz

• Spectral range: 8 … 14 µm

• Exceeding measuring range: Display “- - - -”

• Laser output power: <1 mW

• Wavelength: 630 … 670 nm

• Laser class: 2

• Light ring: 5 x white LED, 5 x blue LED

• Power supply: 2 x 1.5V AA batteries

• Operating conditions: 0 … 50 °C / 32 … 122 °F, 10 … 90 % RH, non-condensing

• Storage conditions: -10 … 60 °C / 14 … 140 °F, 10 … 90 % RH, non-condensing

• Dimensions: 180 x 100 x 55 mm / 7.0 x 3.9 x 2.1"

• Weight: 329 g / 11.6 oz with batteries

3. Practical Applications

• Industrial temperature checks: The infrared thermometer is widely used in manufacturing plants to check the temperature of machines, equipment, and surfaces.

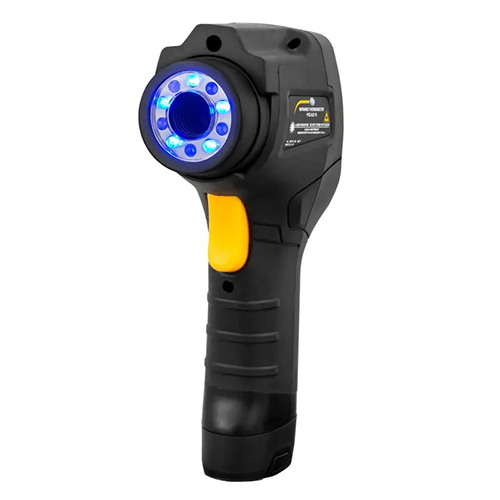

• Leak detection in air conditioning systems: The blue LED ring on the thermometer helps detect leaks in air conditioning systems that are treated with a contrast agent.

• Surface temperature checks in research fields: The device is used in scientific research to measure the temperature of materials and conduct non-contact experiments.

• Automotive maintenance and repair: The infrared thermometer is useful for checking engine parts and electrical systems in vehicles without direct contact.

4. How to Use

• Step 1: Insert the batteries into the device and ensure it is powered on.

• Step 2: Adjust the temperature settings, including the emission value and alarm limits if needed.

• Step 3: Select the measuring mode and determine the spot to be measured. Use the multipoint laser to align the measuring spot accurately.

• Step 4: Point the thermometer at the surface to be measured, and the temperature will be displayed instantly.

• Step 5: Save or record the measurement result, and if the temperature exceeds the alarm limit, the device will trigger an acoustic and visual warning.

• Step 6: After finishing the measurements, turn off the device and store it in a dry place, avoiding extreme temperatures.
