Material Thickness Meter PCE-UFD 50
1. Key Features
- Non-Destructive Testing: Uses ultrasonic waves to measure thickness and detect structural defects in materials.
- Wide Measurement Range: Measures thickness from 0 ... 10000 mm on steel, suitable for various industrial applications.
- Advanced Features:
+ Evaluation methods: DAC and AVG.
+ A-scan display with signal attenuation and amplification.

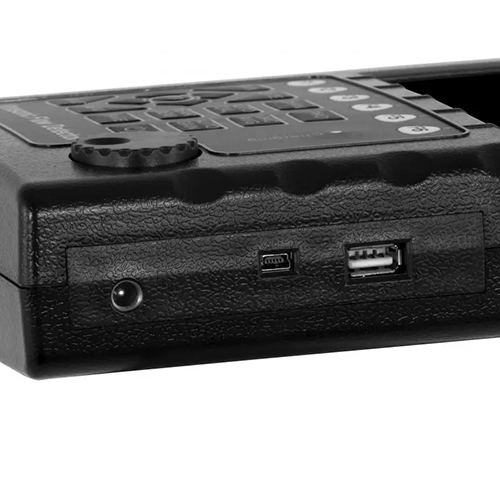

+ Record and export data via USB.
- Adjustable Sound Velocity: Supports a range of 1000 ... 15000 m/s, compatible with various materials.
- Clear Display: 5.7-inch color TFT screen for sharp, clear visuals.
- Compact and Durable Design: Weighs only 1.1 kg, easy to use in demanding environments.
2. Technical Specifications
- Material Thickness Measurement
+ Range: 0 ... 10000 mm.
+ Resolution: 1 mm.
- Pulse Shift
+ Range: -20 ... +999.9 µs.
+ Resolution: 0.1 µs.
- Sound Velocity
+ Range: 1000 ... 15000 m/s.
+ Operating Frequency: 0.5 ... 20 MHz.
- General Specifications
+ Screen: 5.7-inch color TFT.
+ Memory Capacity: Stores up to 100 parameters.
+ Power Supply: 12.6 V / 2 A, 3600 mAh battery.
+ Weight: 1130 g.
+ Dimensions: 240 x 160 x 50 mm.
+ Protection Level: IP30.
+ Operating Conditions: -10 ... 50 °C, 20 ... 90% relative humidity.
3. Practical Applications
- Material Thickness Testing: Evaluate the thickness of walls, pipes, or plates in construction and manufacturing industries.
- Structural Defect Detection: Inspect welds and detect hidden flaws in materials.
- Oil and Gas Industry Applications: Test the thickness of pipelines and storage tanks.
- Assessment and Maintenance: Use in industrial equipment maintenance and periodic inspections.
- Research and Training: Ideal for laboratories or technical training programs.
4. Usage Instructions
- Prepare the Device:

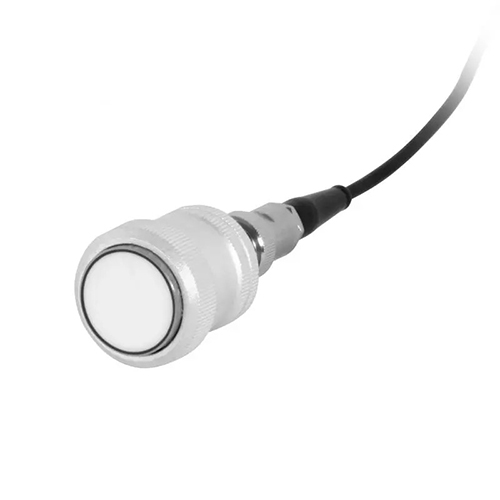

+ Attach the straight or angled probe as required.
+ Ensure the device is fully charged and check all accessories.
- Initial Setup:
+ Adjust the sound velocity according to the material being tested.
+ Select the measurement method (DAC, AVG) and set the appropriate parameters.
- Conduct Measurement:
+ Attach the probe to the material surface, ensuring proper contact.
+ Read the displayed measurement value or store it in memory.
- Record and Export Data:
+ Use the USB interface to extract data and generate reports via software.
+ Customize the reports based on job requirements.
- Device Maintenance:
+ Clean the probe and screen after each use.
+ Store the device in a dry place, avoiding impact and high humidity.
