Force Gauge PCE-DDM 50WI
1. Key Features
High Load Capacity: Measuring range up to 50 tons (500 kN), suitable for heavy-duty tensile force measurements.
Portable Design: Compact and lightweight for ease of transportation and use in various environments.
Advanced Functions: Includes Peak Hold, summation function, and multiple selectable units (kg, t, lbs, N, kN).
High Accuracy: Ensures a precision of ±0.1% of the measurement range, ideal for critical applications.

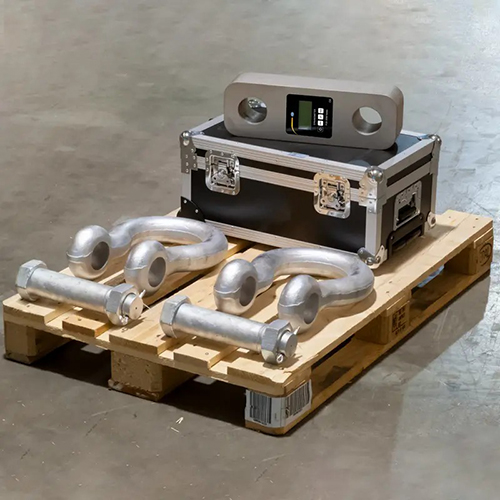

Quality Accessories: Comes with durable steel shackles and a protective carrying case.
Long Battery Life: Operates for approximately 50 hours using 3 AA batteries.
2. Technical Specifications
Measuring Range: 50,000 kg / 500 kN / 110,231 lbs.
Resolution: 20 kg / 200 N / 44 lbs.
Minimum Range: 400 kg / 881 lbs.
Accuracy: ±0.1% of the measurement range.
TARE Range: Up to 20% of the measurement range.
Display: LCD with 22 mm digit height.
Sampling Rate: 2.5 Hz.
Operating Temperature: -10°C to +40°C.
Power Supply: 3 x AA batteries (1.5 V).

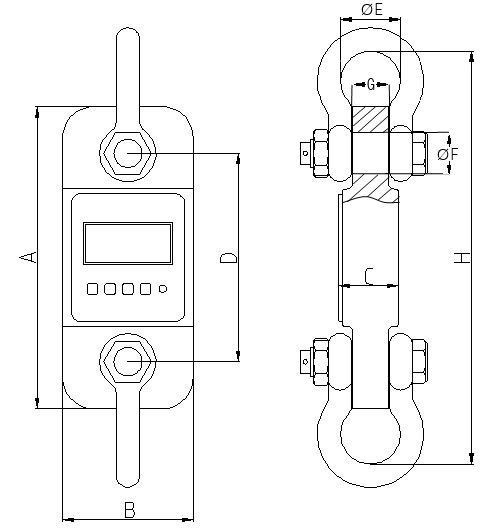

Dimensions: A: 465 mm, B: 150 mm, C: 104 mm, D: 305 mm, ØE: 184 mm, ØF: 74 mm, G: 101 mm, H: 930 mm.
Material: Durable steel.
3. Practical Applications
Tensile Force Testing: Used in manufacturing and transport industries to measure cable or equipment pulling forces.
Load Monitoring: Helps verify load weights in construction and warehouse operations.
Maritime Applications: Measures the pulling force of anchors, ropes, or shiploads.
Safety Inspections: Ensures lifting and load-bearing equipment meets safety standards.
Maintenance and Repairs: Useful for maintaining cranes, hoists, or other high-stress systems.
4. How to Use
Device Preparation:
Insert three AA batteries into the device.
Check the condition of the shackles and the protective case before use.
Performing Measurements:
Attach the device to the object to be measured using the shackles.
Turn on the device and select the desired unit of measurement.
Take the measurement and observe the value displayed on the screen.
Using Special Functions:
Peak Hold: Activate this function to retain the highest measured force value.
Summation Function: Enable this feature to calculate the total load.
Shutdown and Storage:
Turn off the device after use.
Detach the device from the shackles and store it in the protective case.
