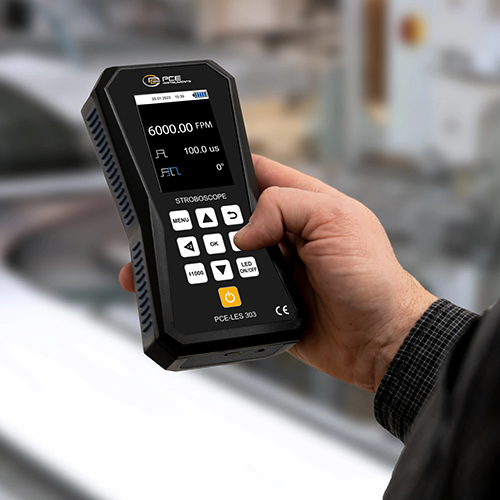

Handheld Stroboscope PCE-LES 303UV-365
1. Key Features

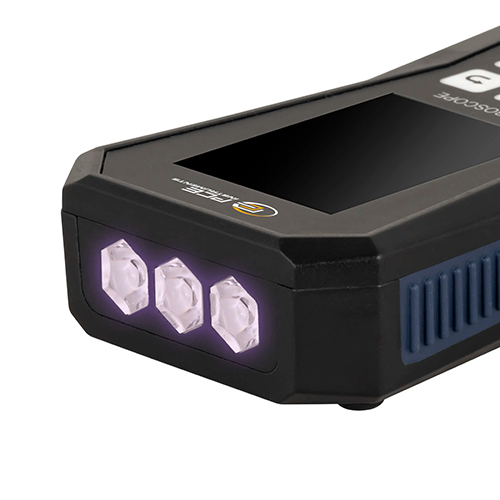

High-intensity light: Equipped with 3 high-power UV LEDs with an intensity of up to 1731 μW/cm² at a distance of 30 cm.
Wide frequency range: Adjustable flash frequency from 60 ... 300,000 FPM or 1 ... 5000 Hz, suitable for various applications.
Flexible phase shift mode: Phase shift range from -360° to +360°, allowing for flexible viewing angles.
Digital pulse adjustment: Precisely control flash time and light intensity.
Portable design: Lightweight and compact, suitable for handheld use in different working environments.
Clear color display: Sharp 2.8-inch LC screen with adjustable brightness for clear parameter display.
Route measurement mode: Stores up to 15 routes, with a maximum of 10 machines per route and 5 points per machine, enabling efficient measurements without reconfiguration.
Signal triggering: Synchronizes flash frequency with input or output signals for accurate motion analysis.
2. Technical Specifications
Flash Frequency:
Range: 60 ... 300,000 FPM / 1 ... 5000 Hz
Resolution: 0.01 FPM
Accuracy: ±0.003 % of set value or ±1 LSD
UV Light Intensity:
1731 μW/cm² at 30 cm (frequency 1000 Hz, brightness 1%)
1045 μW/cm² at 50 cm (frequency 1000 Hz, brightness 1%)
Power Supply: Lithium-ion battery 7.4 V, 2200 mAh; Maximum operating time of 4.5 hours.
Operating Conditions:
Temperature: -20 ... 60 °C
Humidity: 35 ... 85 % RH
Dimensions: 165 x 90 x 35 mm
Weight: 284 g
3. Practical Applications
Printing and textile industries: Monitor and inspect machinery to ensure accuracy and operational efficiency.
Maintenance and repair: Non-contact measurement of speed and vibration for rotating and moving equipment.
Product quality inspection: Detect motion errors or abnormal vibrations in production lines.
Motion analysis: Assist in observing rotating parts such as shafts, gears, or fans in slow-motion mode.
4. How to Use
Preparation:
Fully charge the battery before use.
Ensure accessories like USB cable and service pouch are available.
Start-Up:
Press the power button to turn on the device. The screen displays status information.
Frequency Adjustment:
Adjust the flash frequency using x2, ÷2 keys, or input specific values.
Observation:
Direct the LED light towards the object to be inspected and observe via the screen or directly.
Activate the phase shift mode if a change in viewing angle is needed.
Route Measurement:
Use the route settings for continuous measurement without re-entering parameters.
Shutdown:
Turn off the device after use and store it in the service pouch to ensure durability.
