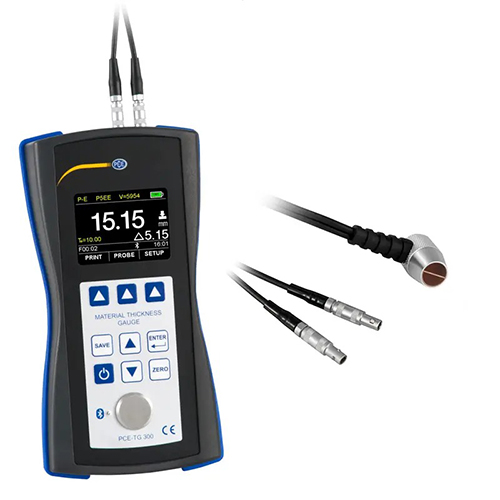

Thickness Meter PCE-TG 300-NO5/90
1. Key Features
Wide measuring range: From 0.65 mm to 600 mm, suitable for measuring the thickness of various materials.
Flexible measuring modes: Operates in two modes: pulse-echo and echo-echo, ideal for coated materials.
Non-destructive measurement: Easily measures thickness on material surfaces without damaging the outer layer.
Diverse sensors: A 90° angled probe allows access to difficult-to-reach points.
Data storage and transfer: Integrated memory and capability to transfer data via Bluetooth or USB.
Convenient design: Compact size, easy-to-read TFT color display, and extended operation time.
2. Technical Specifications
PCE-TG-NO5/90 Probe (90° Angled)
Measuring range: 1 ... 600 mm (steel).
Frequency: 5 MHz.
Probe diameter: 10 mm.
PCE-TG 300-NO5/90 Device
Measuring modes:
Pulse-Echo: 0.65 ... 600 mm (steel).
Echo-Echo: 2.50 ... 100 mm (with a specialized probe).
Accuracy: ±0.04 mm (<10 mm), ±0.4% (>10 mm).
Resolution: 0.1 mm / 0.01 mm / 0.001 mm.
Materials measured: Metals, plastics, ceramics, epoxy, glass, and homogeneous materials.
Power supply: 4 AA batteries (up to 100 hours of operation).
Connectivity: Bluetooth and USB 2.0.
Dimensions: 185 x 97 x 40 mm.
Weight: 375 g.
3. Practical Applications
Industrial inspection: Measures wall thickness of steel pipes, tanks, and other structures in production.
Maintenance and repair: Identifies material wear in mechanical, marine, and automotive industries.
Material fabrication: Measures coating, plastic, or composite material thickness during manufacturing.
Construction: Checks wall thickness and concrete components.
Research and development: Analyzes material uniformity and quality.
4. Usage Instructions
Prepare the device:
Attach the appropriate probe for your application.
Power on the device and select the desired measuring mode.
Perform the measurement:
Apply the probe to the surface of the material.
Use coupling gel to ensure accurate measurements.
Read the results on the TFT display.
Store and process data:
Save the measurements in the integrated memory.

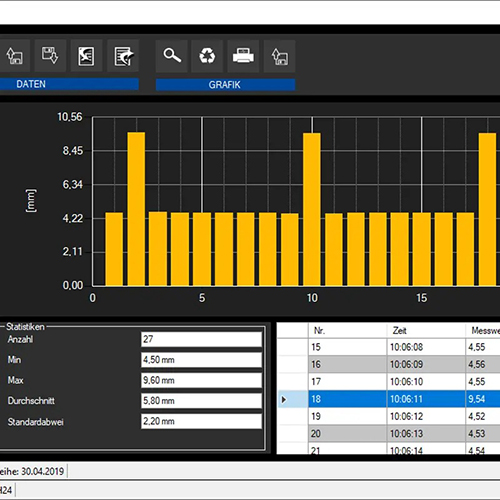

Connect to a computer via Bluetooth or USB for detailed data analysis.
Maintenance:
Clean the probe after use.
Store the device in its case to prevent damage or wear.
